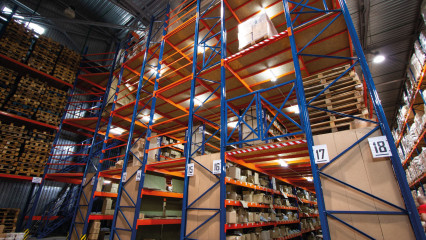

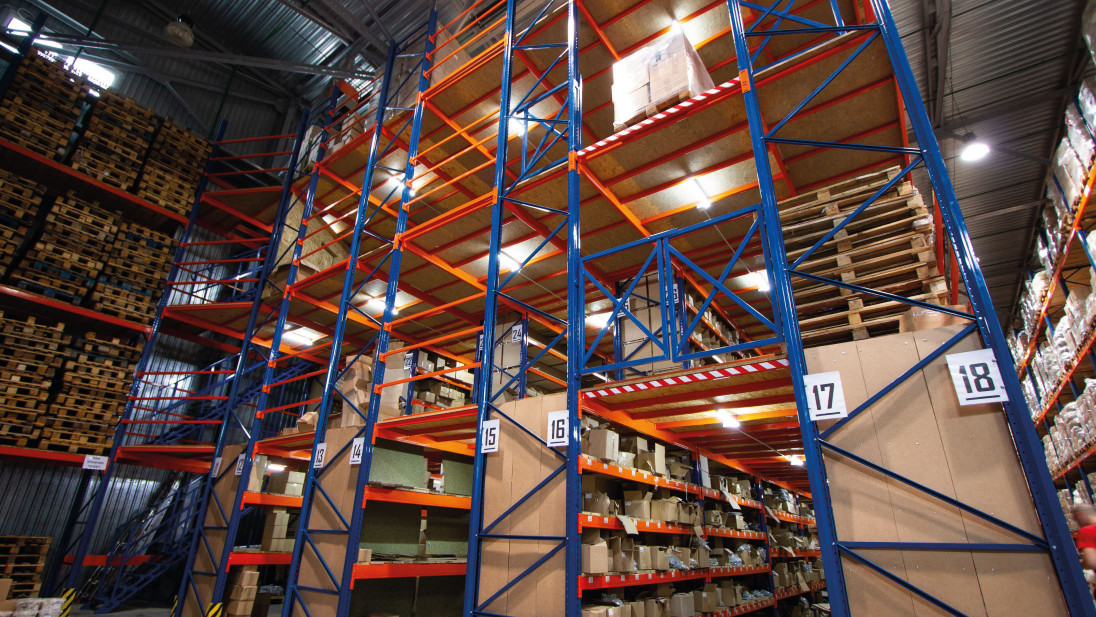

Reinforced mezzanine based on pallet racks
- Load on the storage tier is up to 1250 kg
- Bearing capacity is up to 1000 kg/sq.m.
- Working corridor width is 800-4000 mm
- Highly adaptable design
Video
Purpose

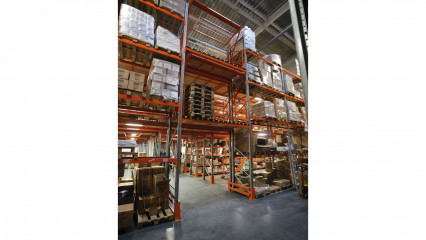

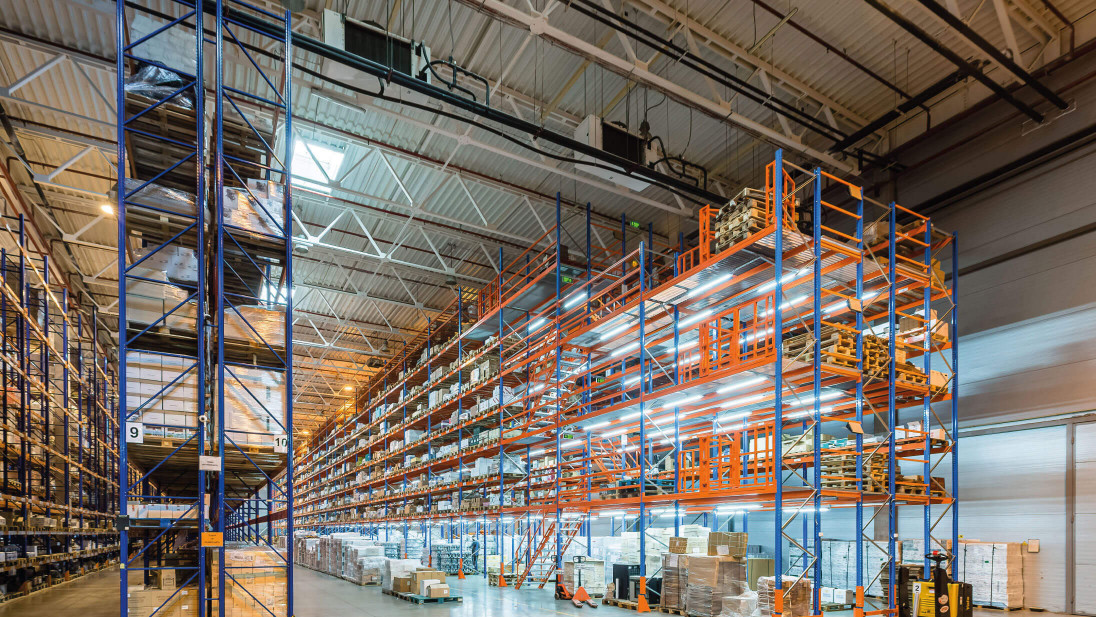

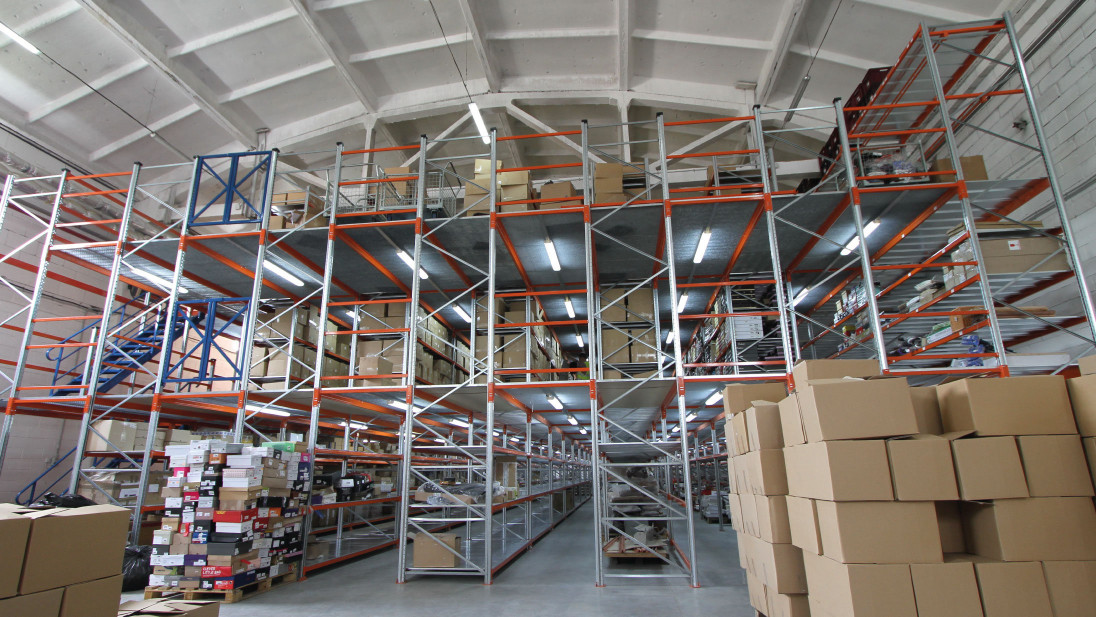

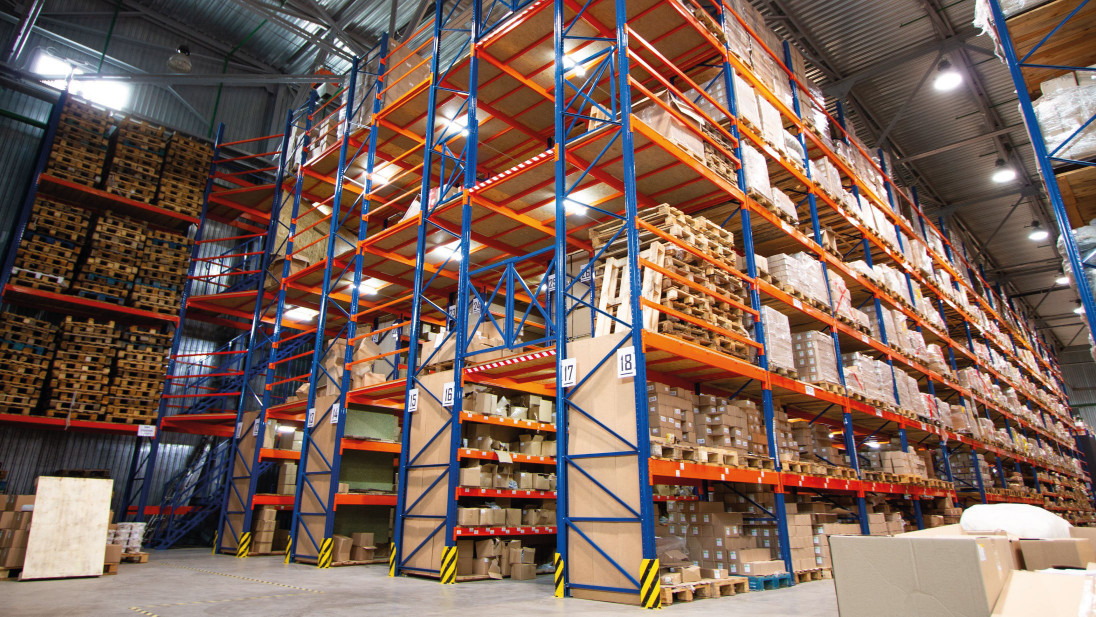

The multi-storey structure based on pallet racks is an uncompromising solution that provides a versatility of application, wide possibilities for modernization and high loads for heavy and oversized goods.

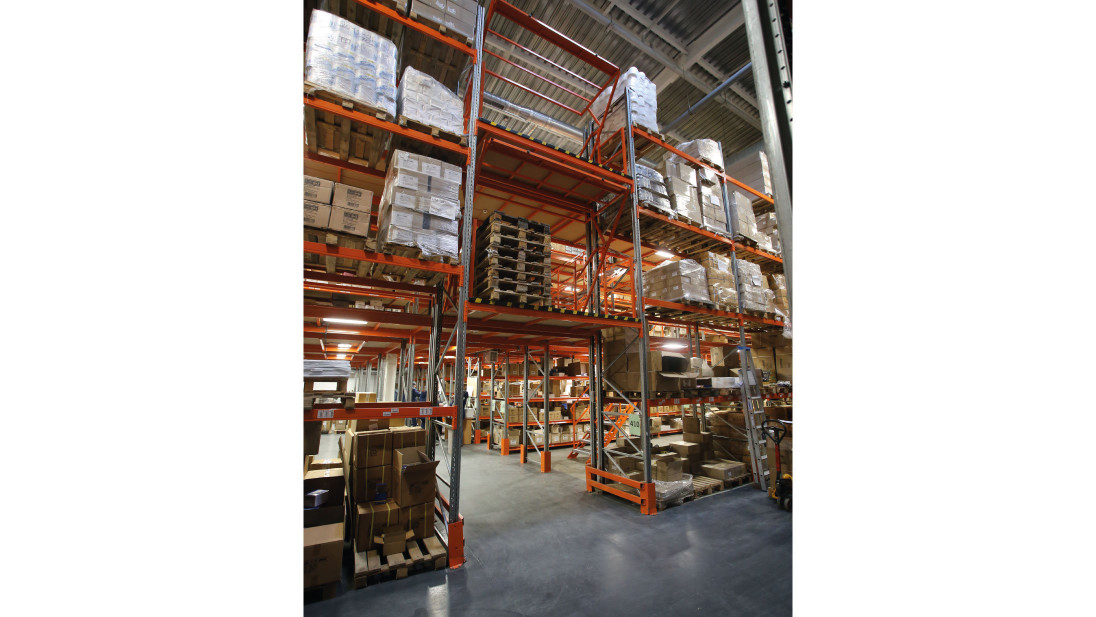

Robust upright frames and traverses of the pallet rack allow you to use shelves of large sizes, and if necessary, make wide working passes. A hybrid design is also possible: pallet storage on the ground storey and storage of boxes and unit loads on the second storey and above, or organising free space for an office or additional goods handling operations.
Suitable for
- Piece goods
- Crates
- Trays
- Boxes
- Pallets
Description

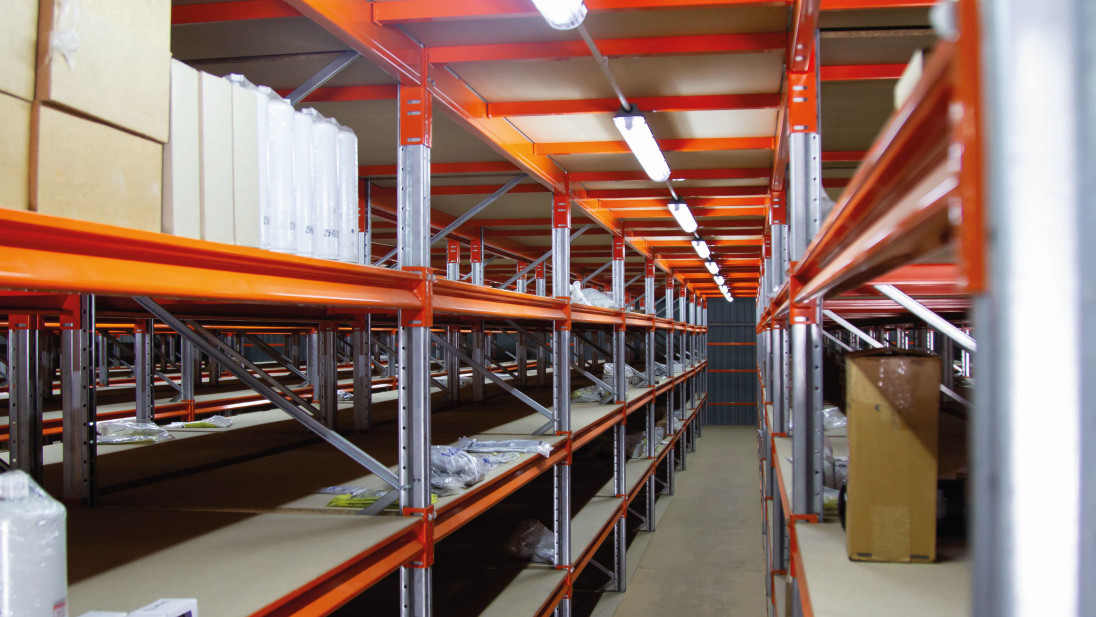

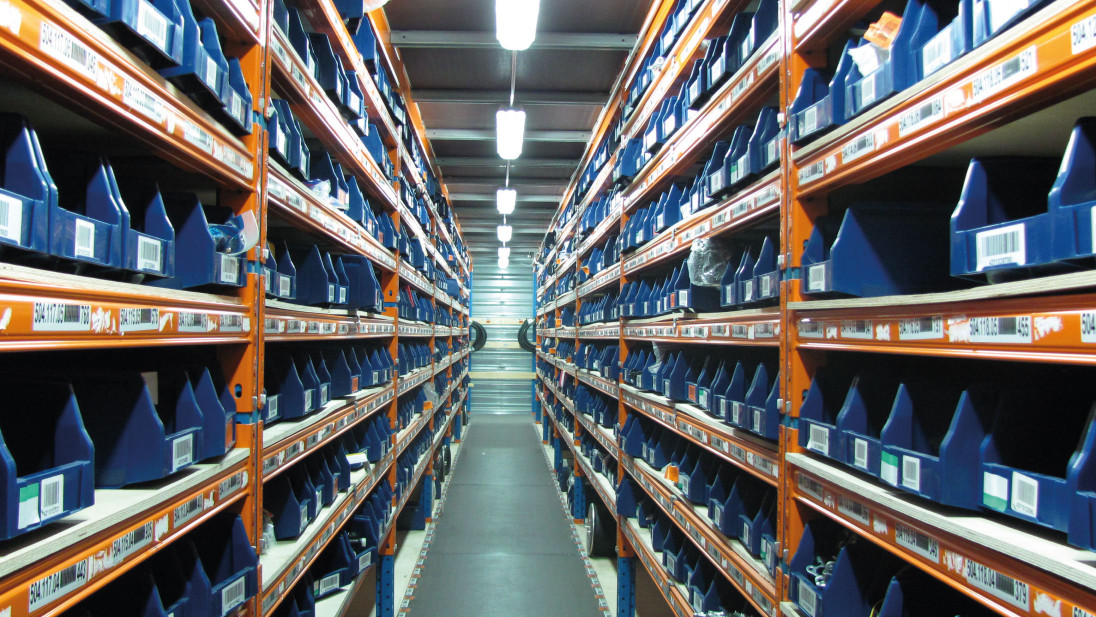

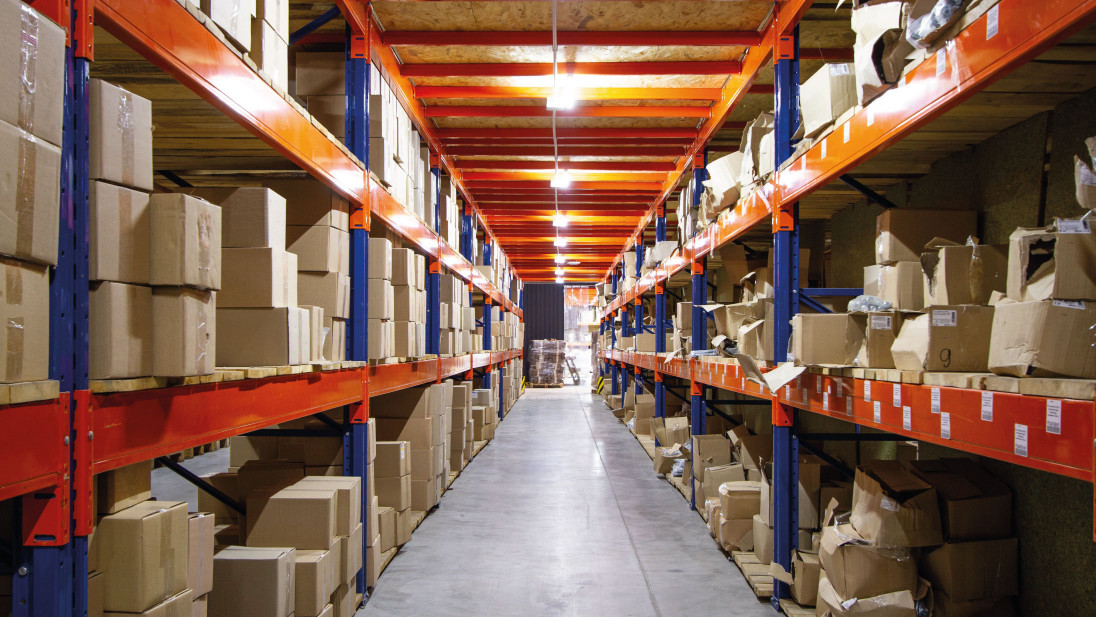

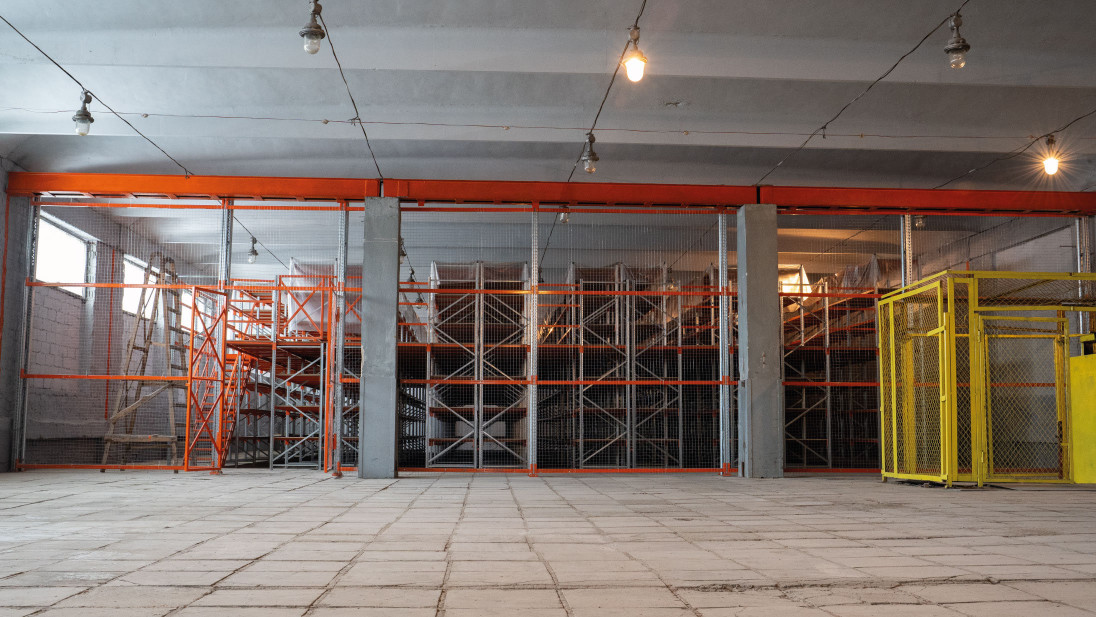

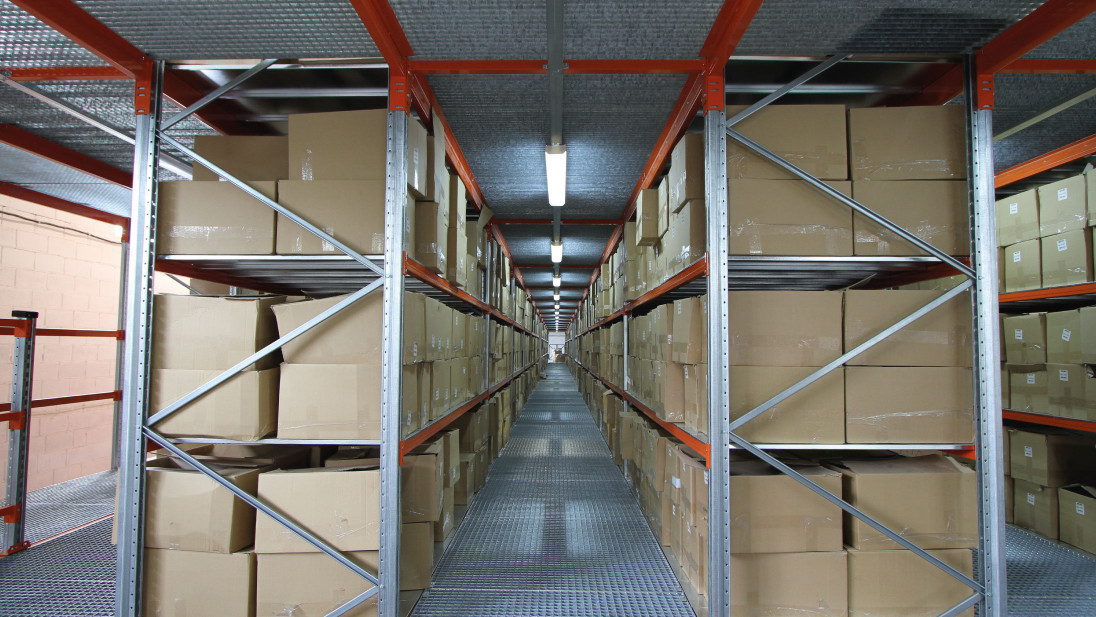

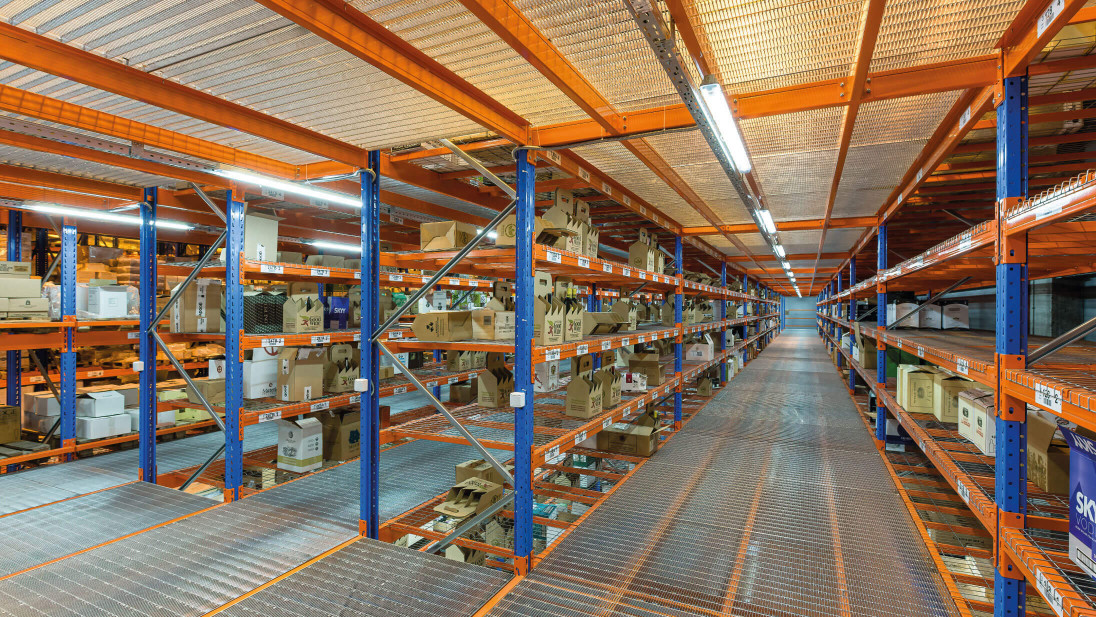

The reinforced mezzanine is based on standard elements of pallet racks, which are retrofitted with floor covering elements, shelves, stairs, safety railings and loading gates. This type of multi-storey racking design is suitable for very heavy and bulky cargo. You can store goods on shelves both in factory packaging (containers) and in plastic trays.

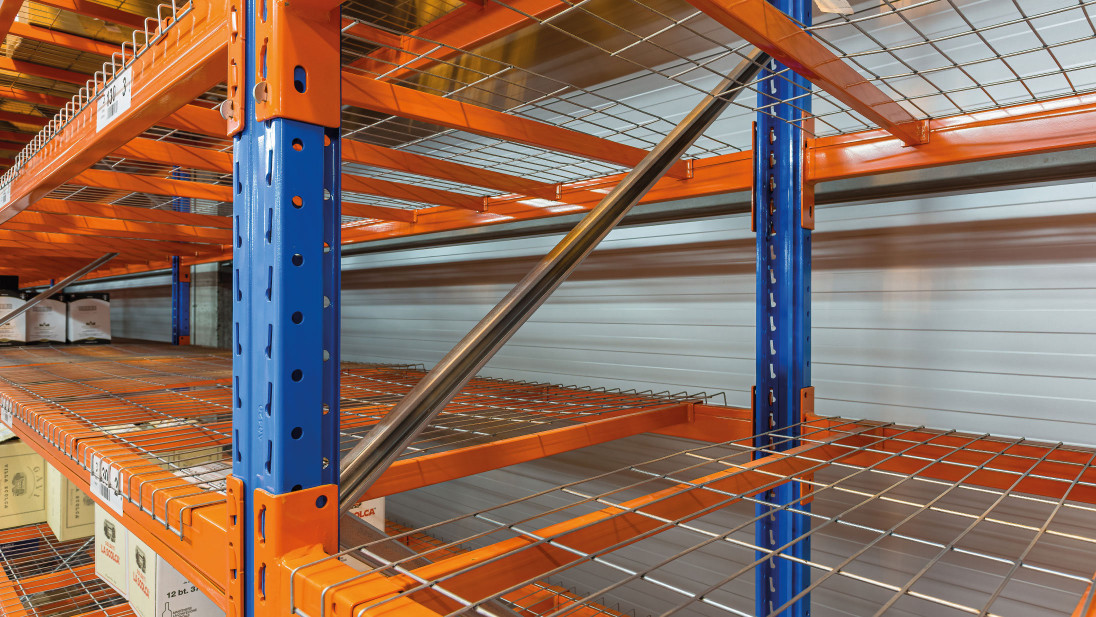

Variety of pallet rack strut options (70, 85, 90, 100, 110, 120, 140 mm) and traverse (from 60 to 160 mm), allows you to achieve optimal metal consumption of the structure while ensuring high load requirements.

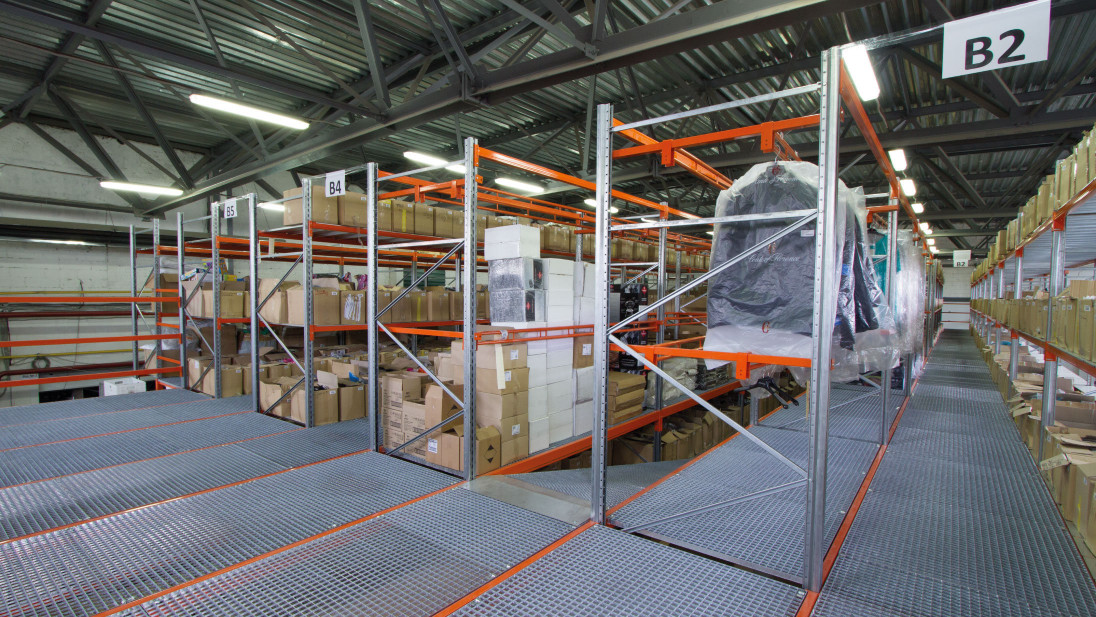

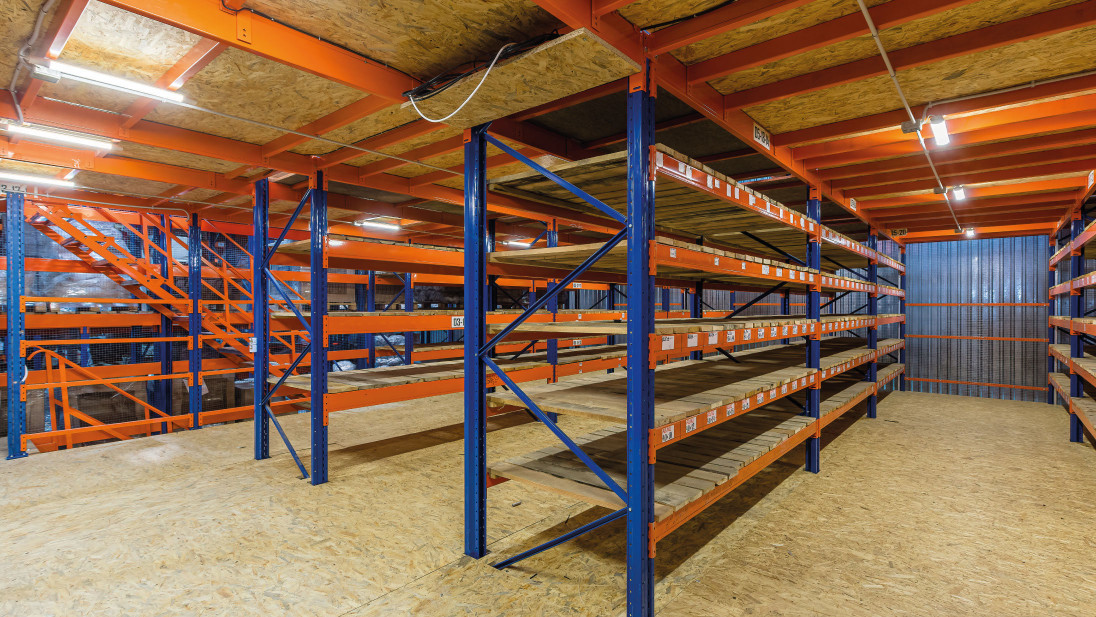

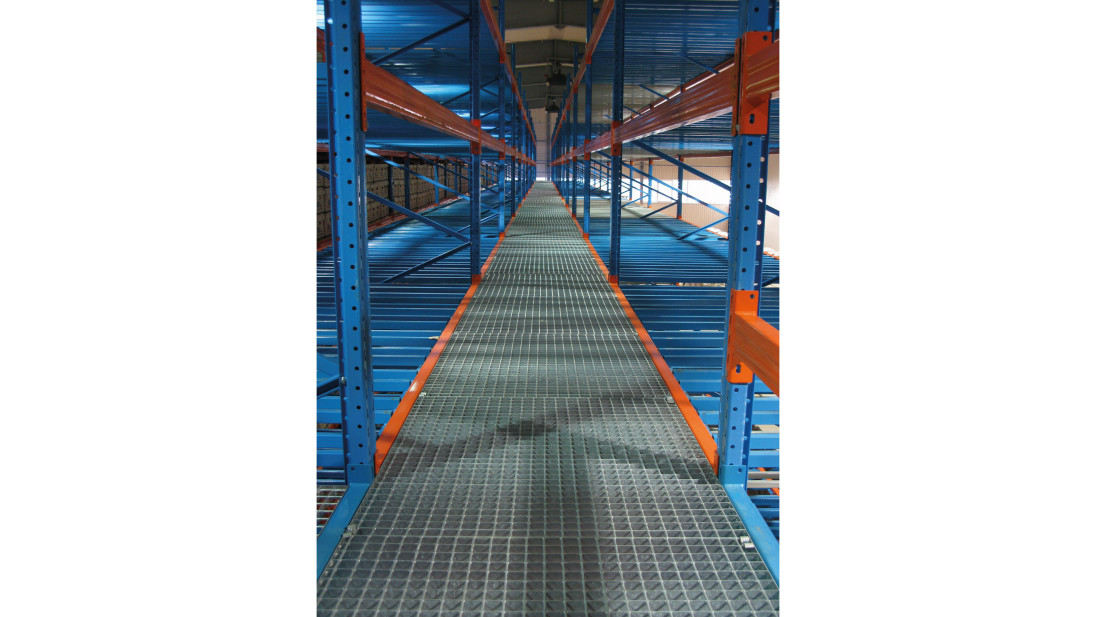

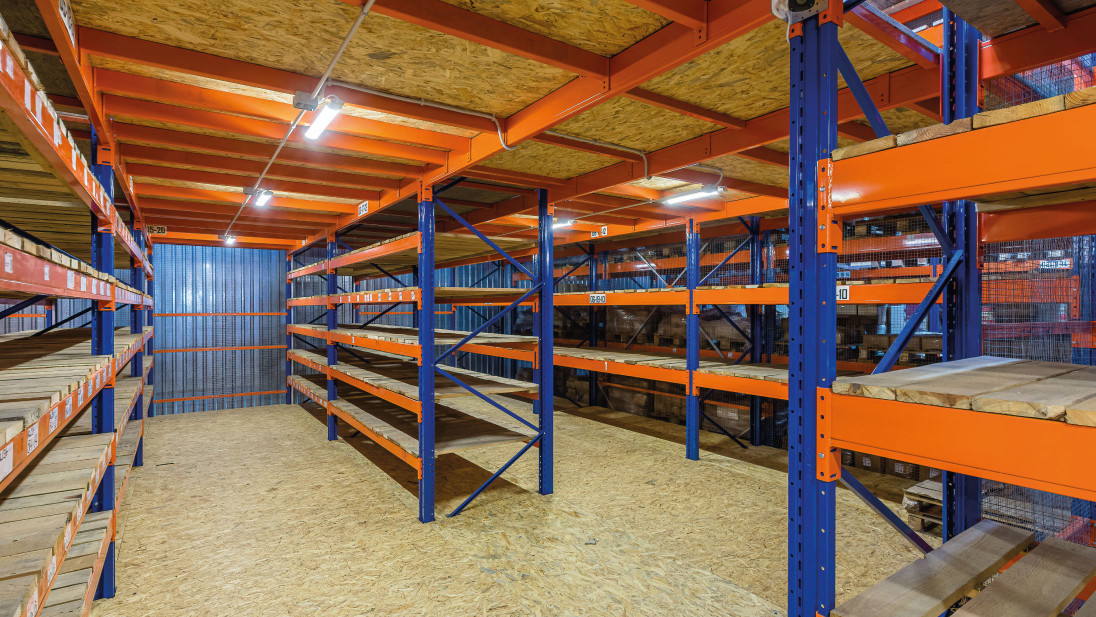

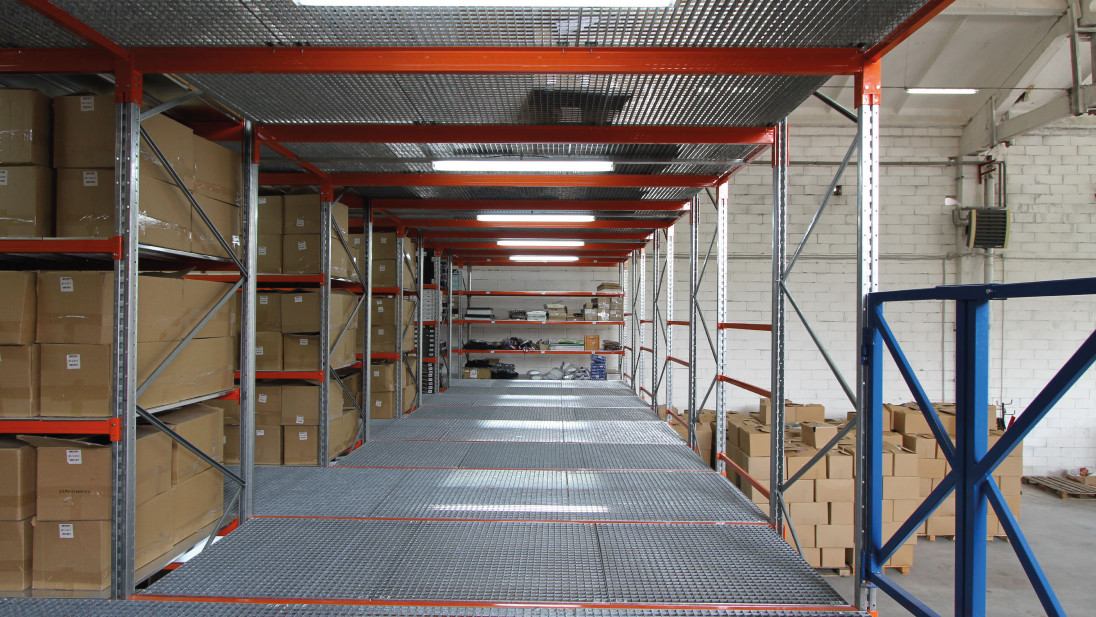

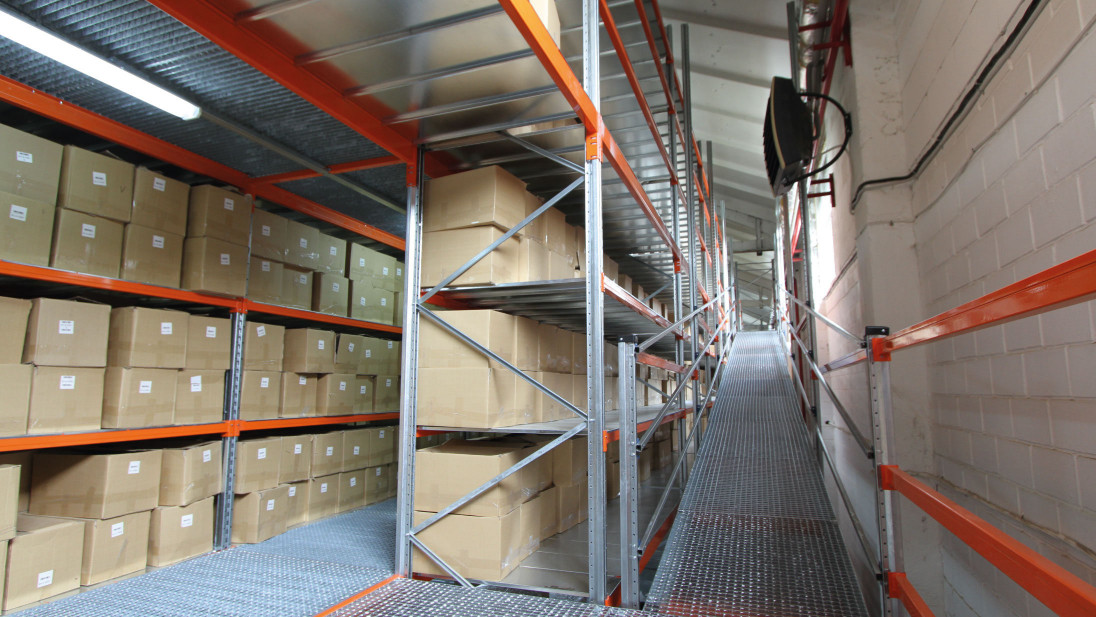

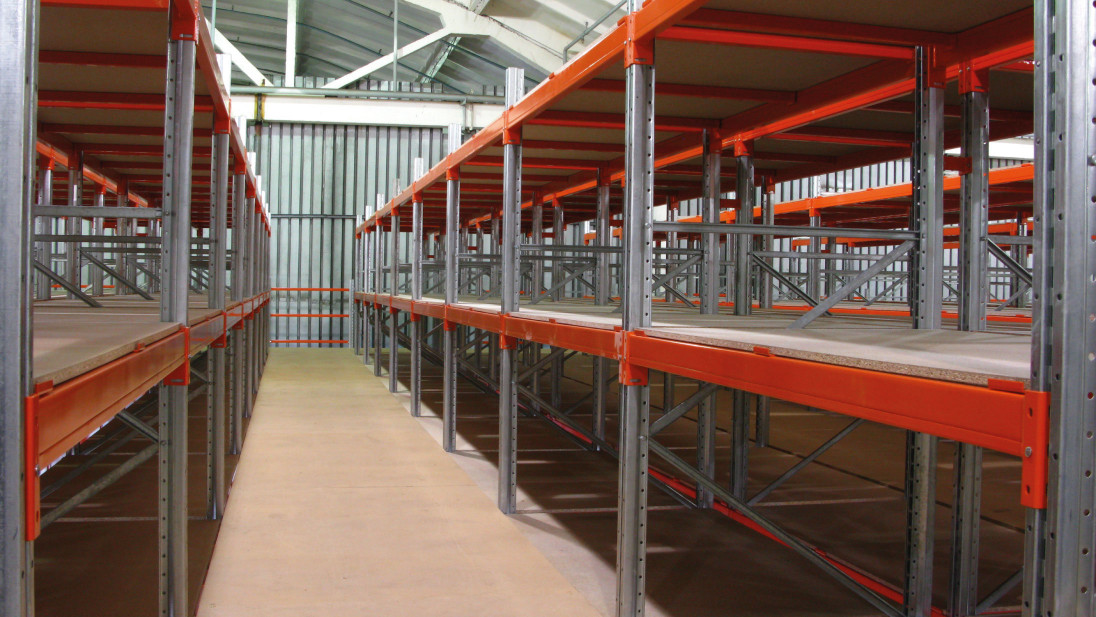

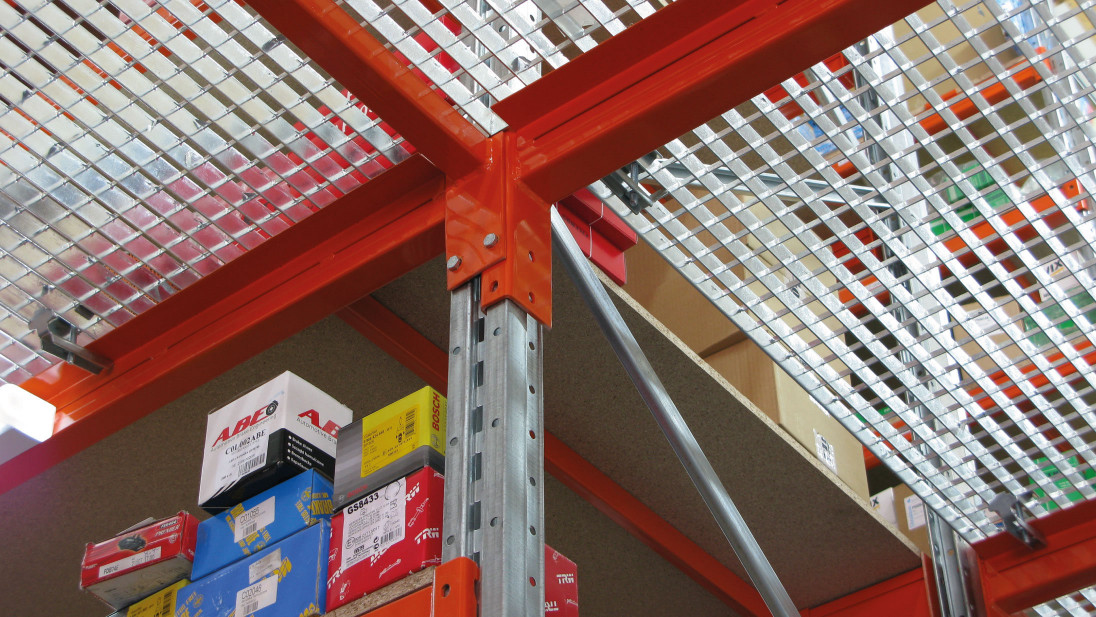

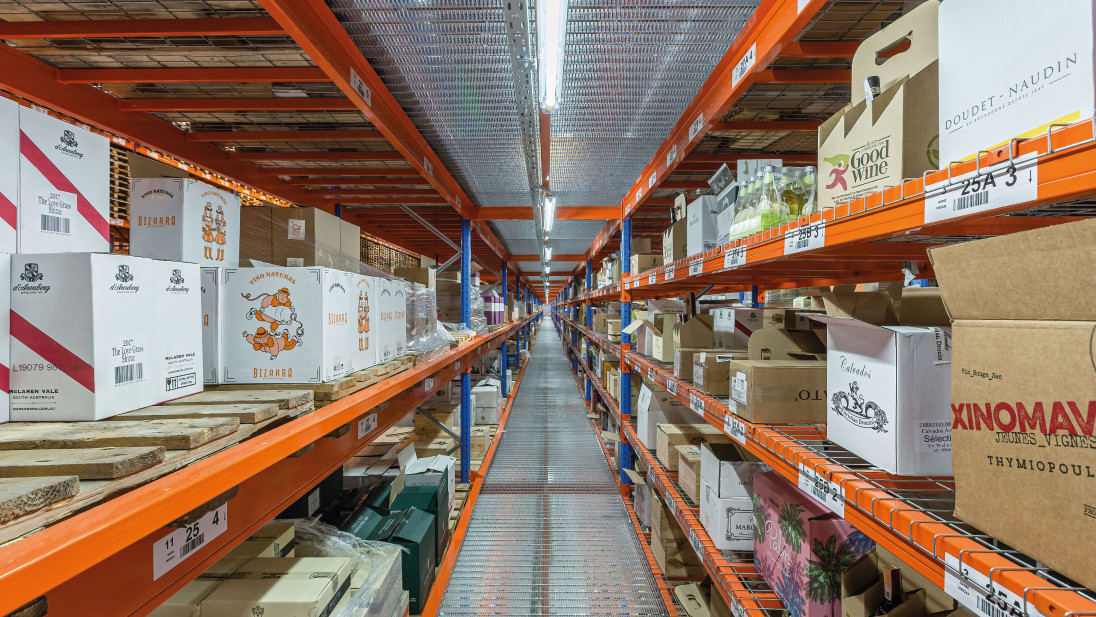

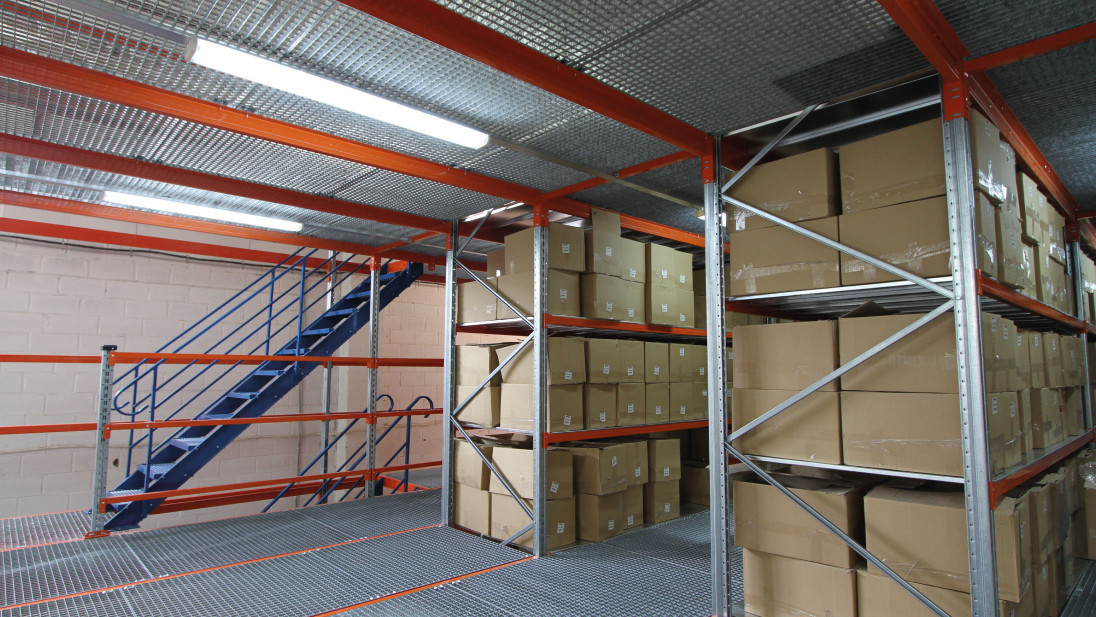

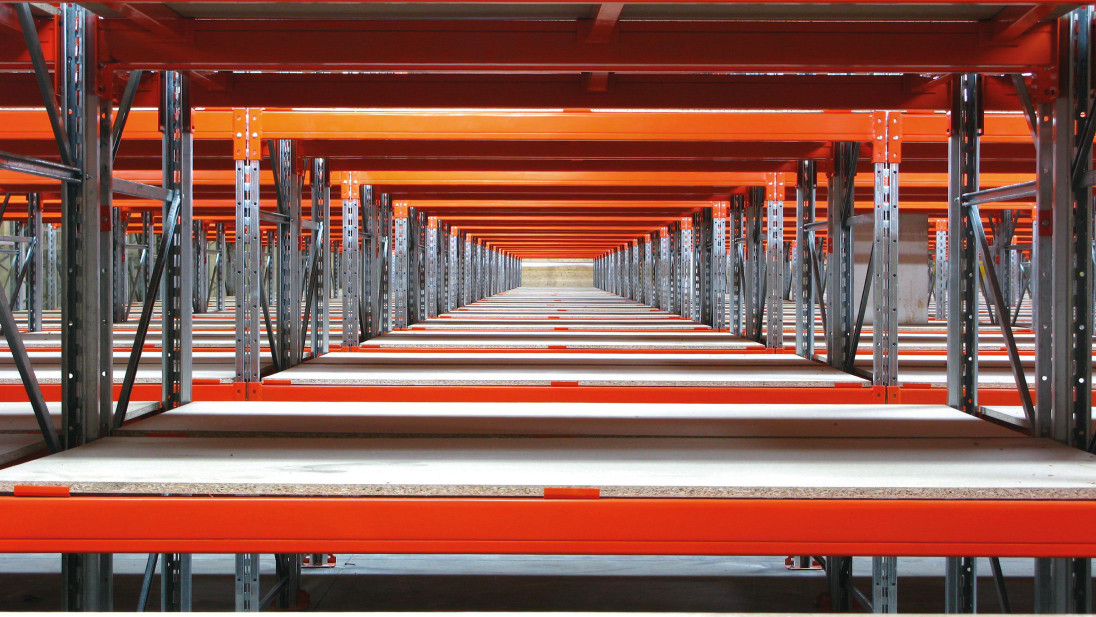

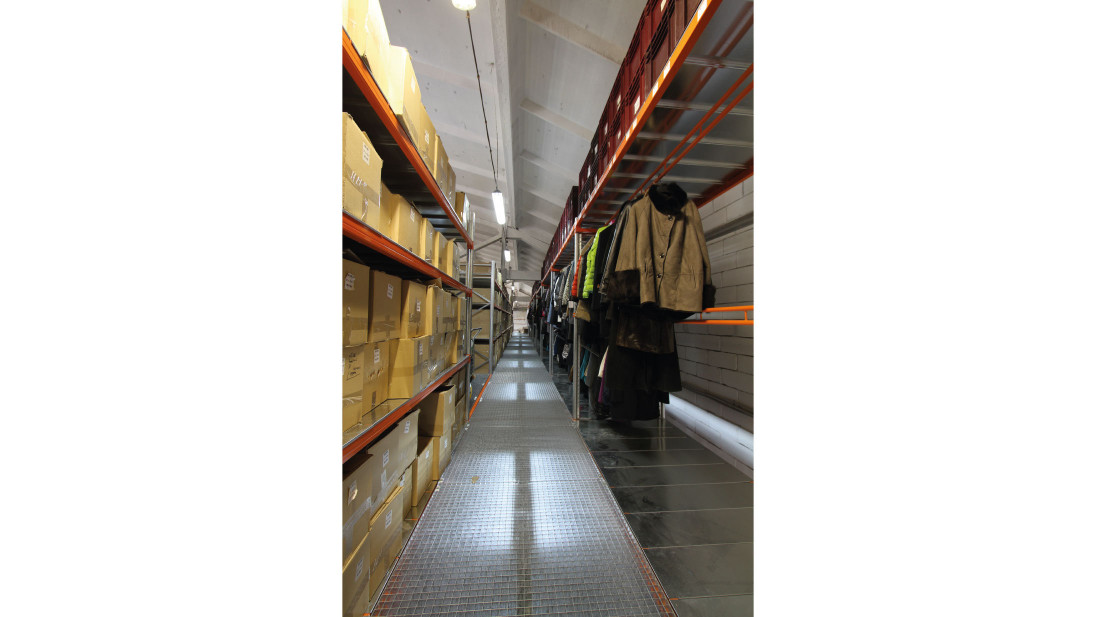

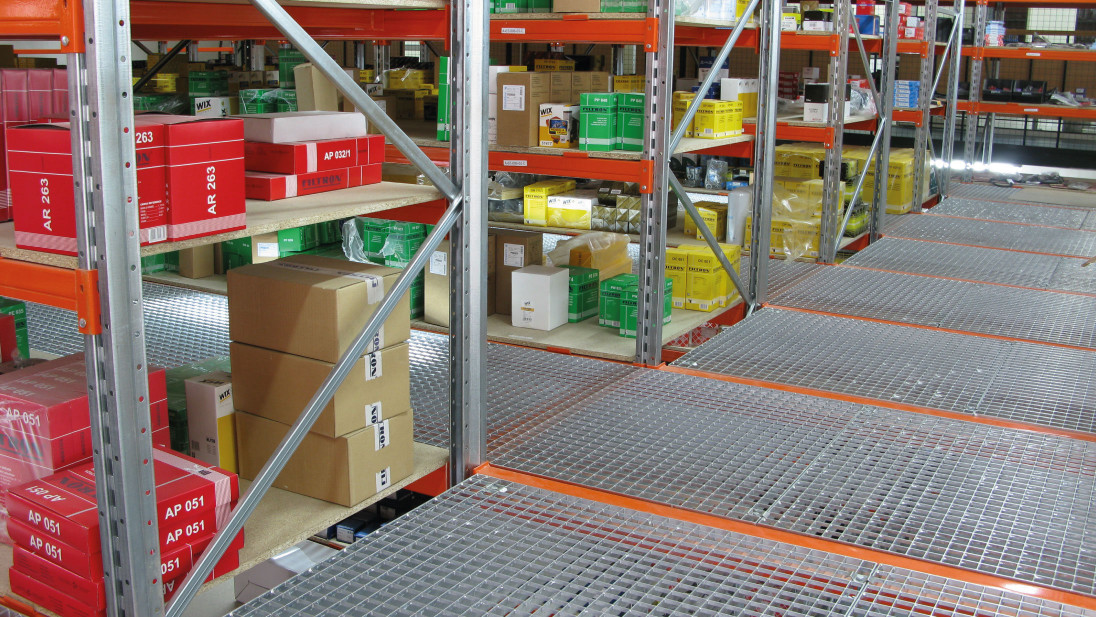

MDF (30-38 mm) or galvanised lattice panels are used to cover the floor. The first option is a little cheaper, more convenient when working with trolleys (the wheels go smoothly and do not make noise), but worse in terms of fire safety, may require additional treatment with special chemicals to increase fire resistance. Metal grids, in turn, transmit light better and do not cause questions from the fire department.

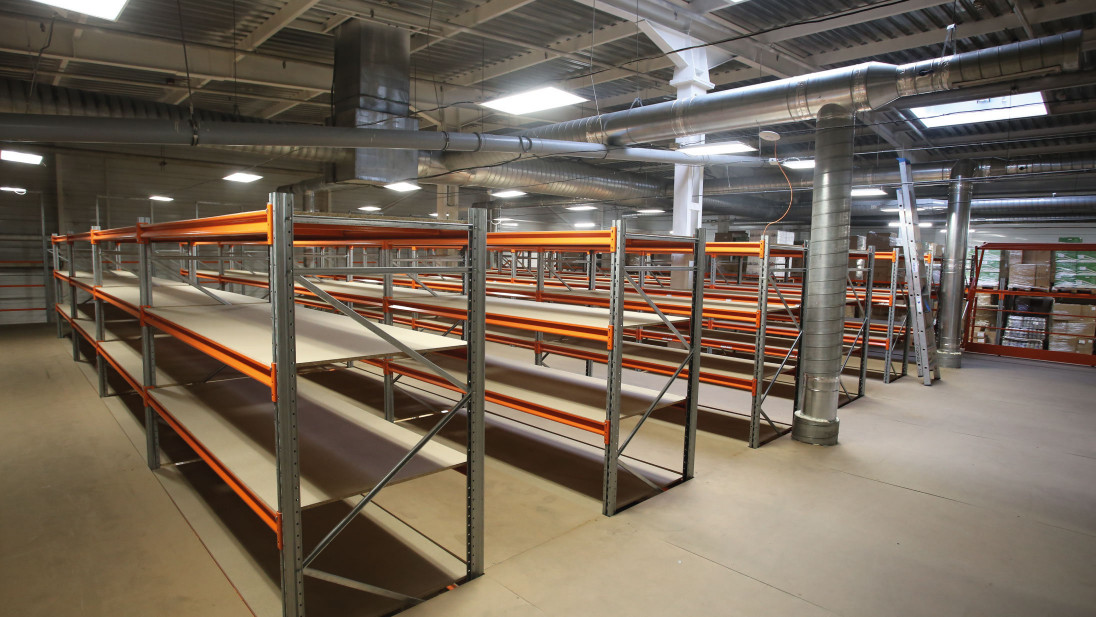

You can use even more coverings as shelves. We will divide them into wooden and metal.
Wooden:
- polished chipboards
- laminated chipboards
- OSB boards
- MDF boards
- plywood
- built-up boards
Metal:
- solid galvanized or painted combined shelves
- perforated galvanized or painted combined shelves
- galvanized mesh shelves (made of rods)
- wire shelves (similar to the board)

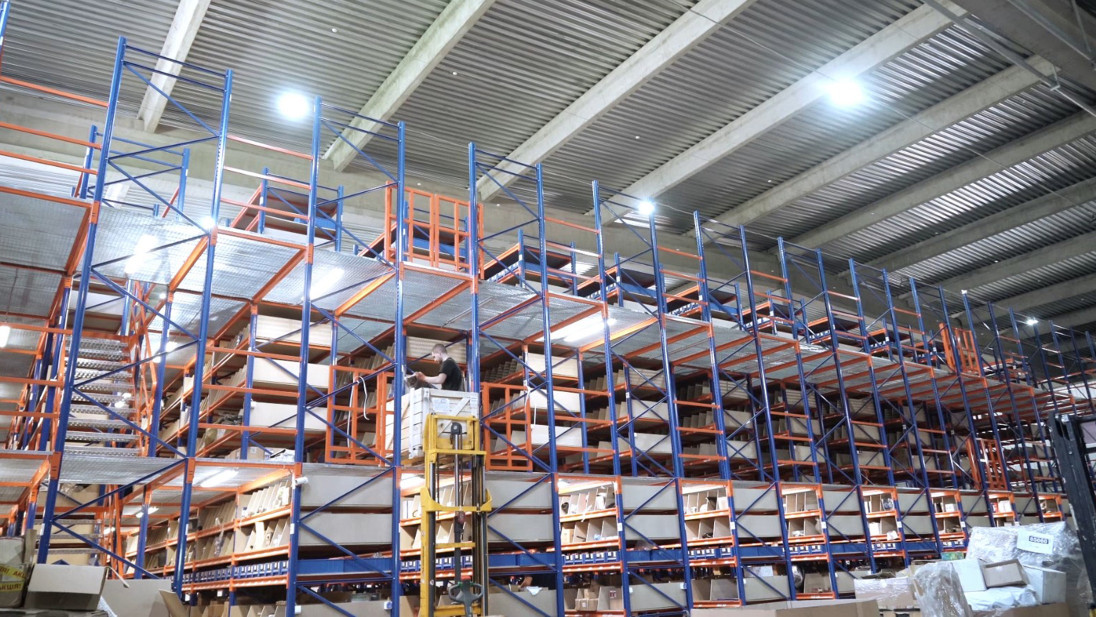

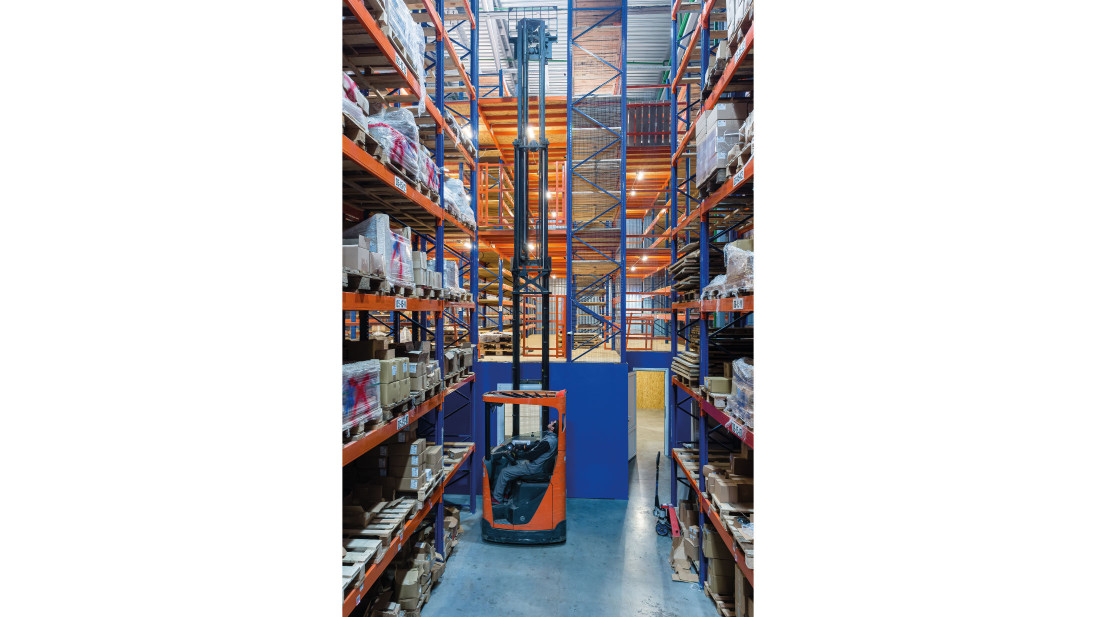

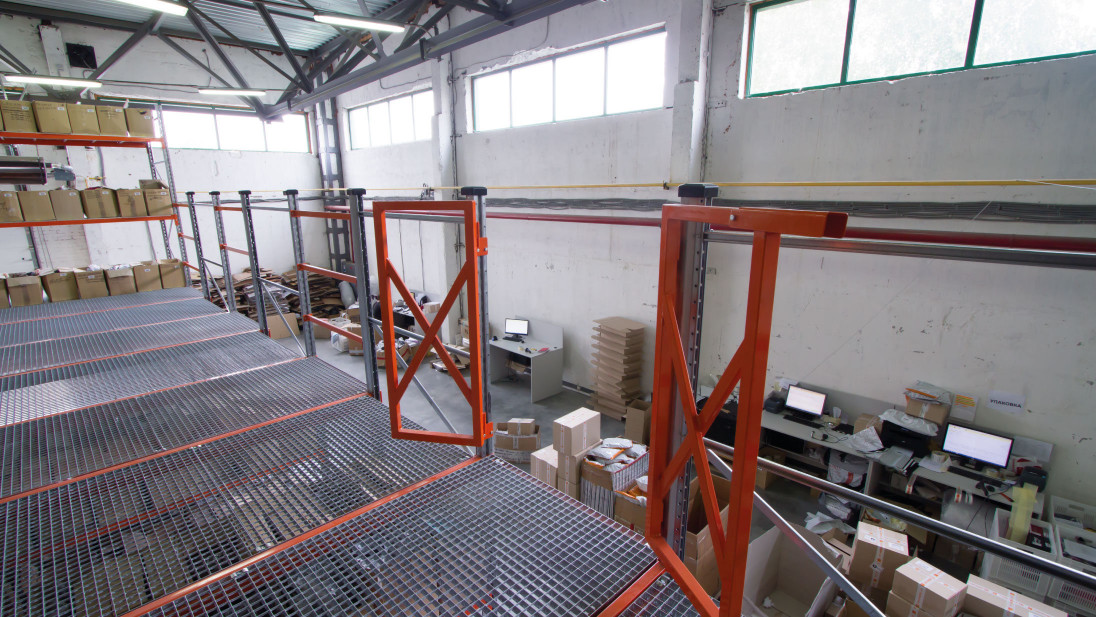

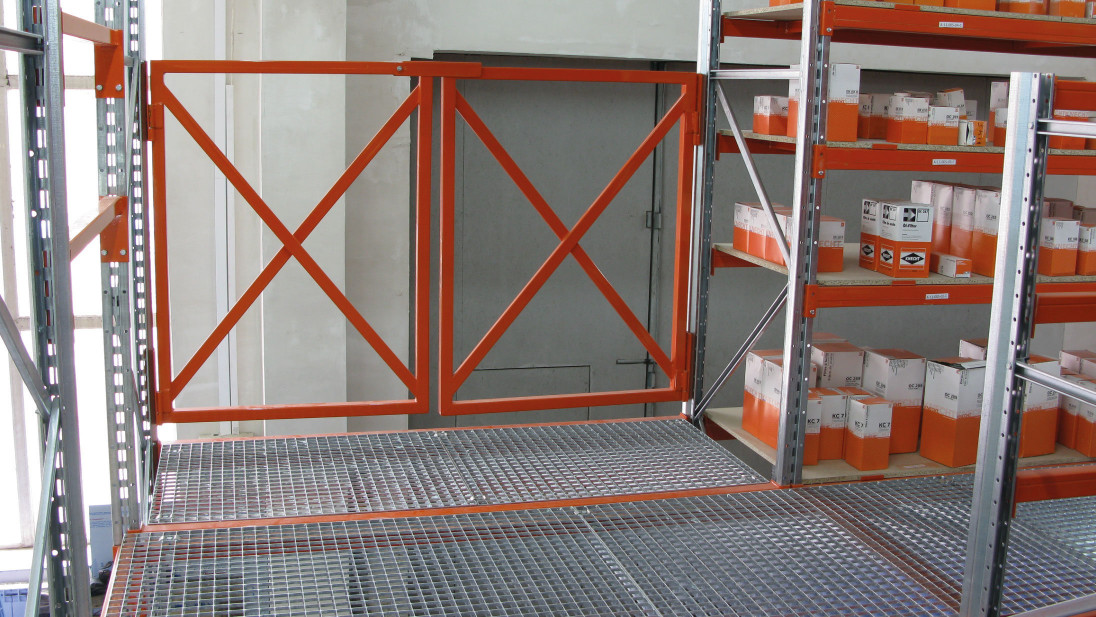

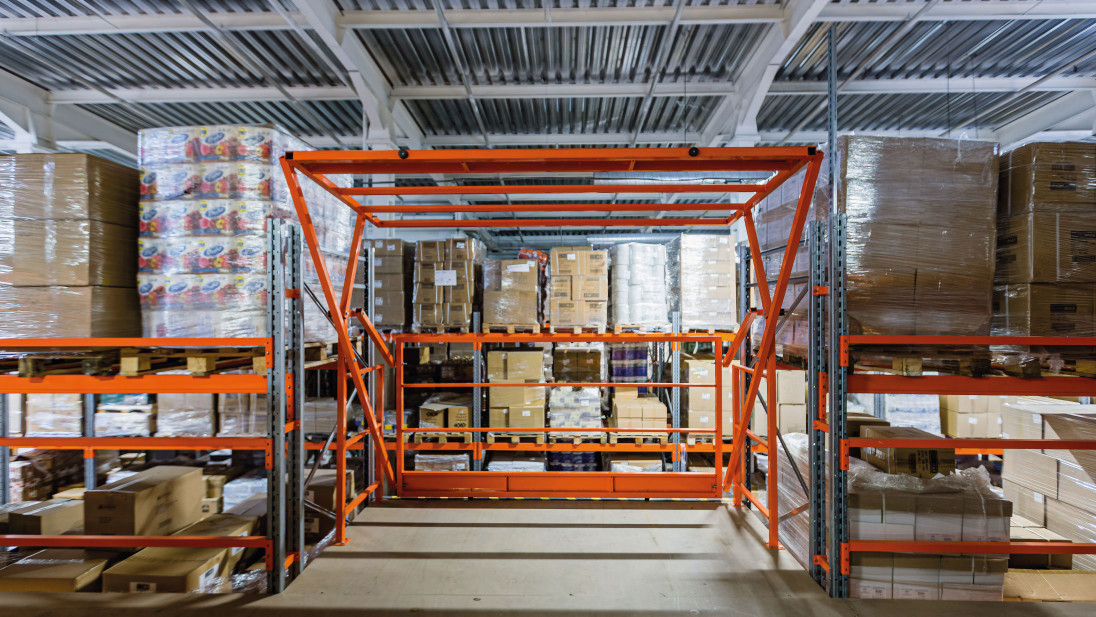

The high load-bearing capacity (350 - 1 000 kg/m²) allows the use of a hydraulic trolley to move goods around the storey. You can place the goods on the upper storeys of the mezzanine using any warehouse equipment, via a loading gate, which serves as a safety railing when closed.

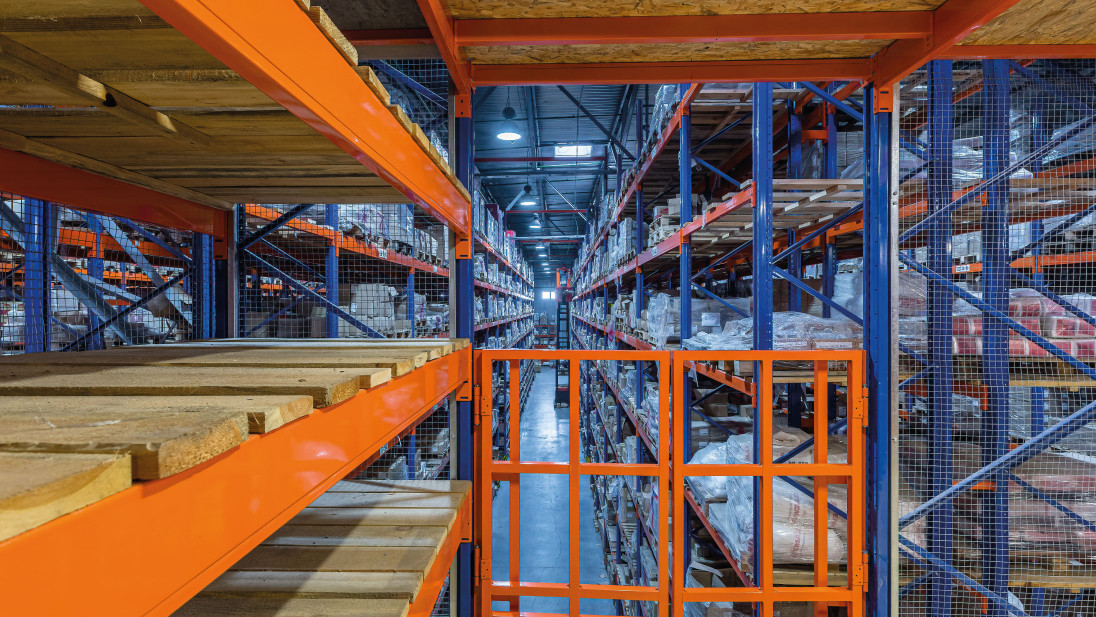

There is an advanced version of the loading gate, which completely prevents staff from inadvertently falling out. This tilt-and-turn model is always in the closed position, either on the loading side or on the mezzanine side.

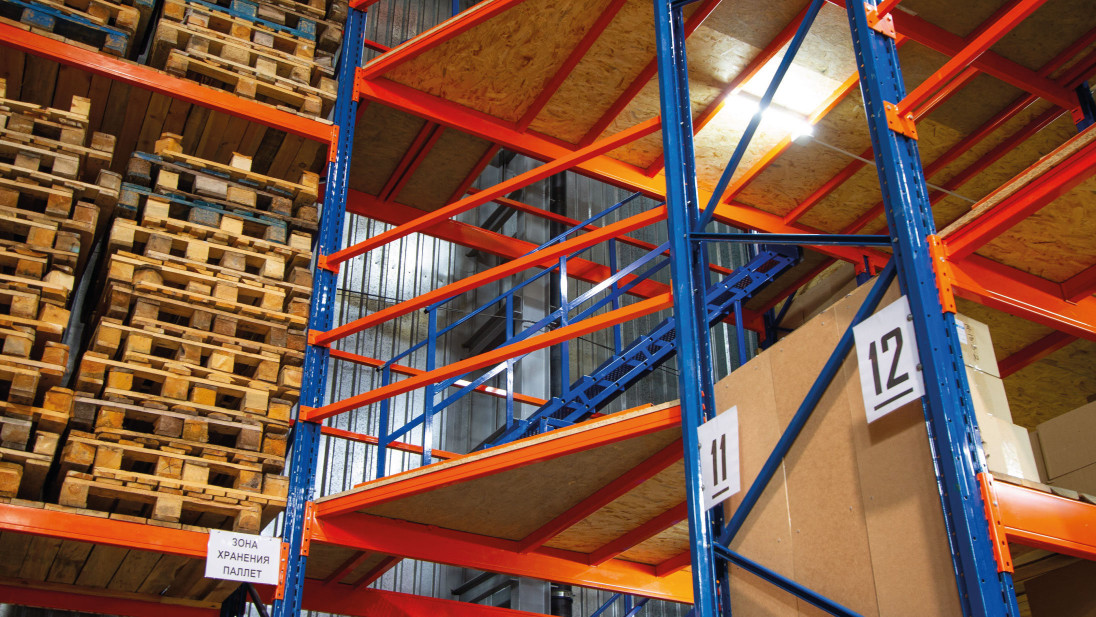

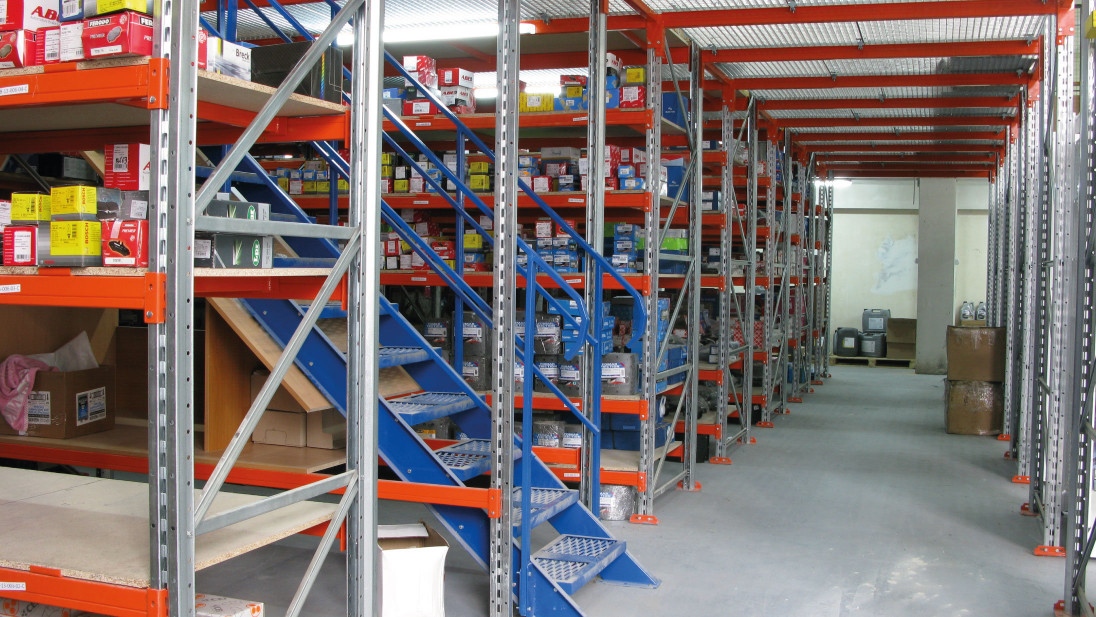

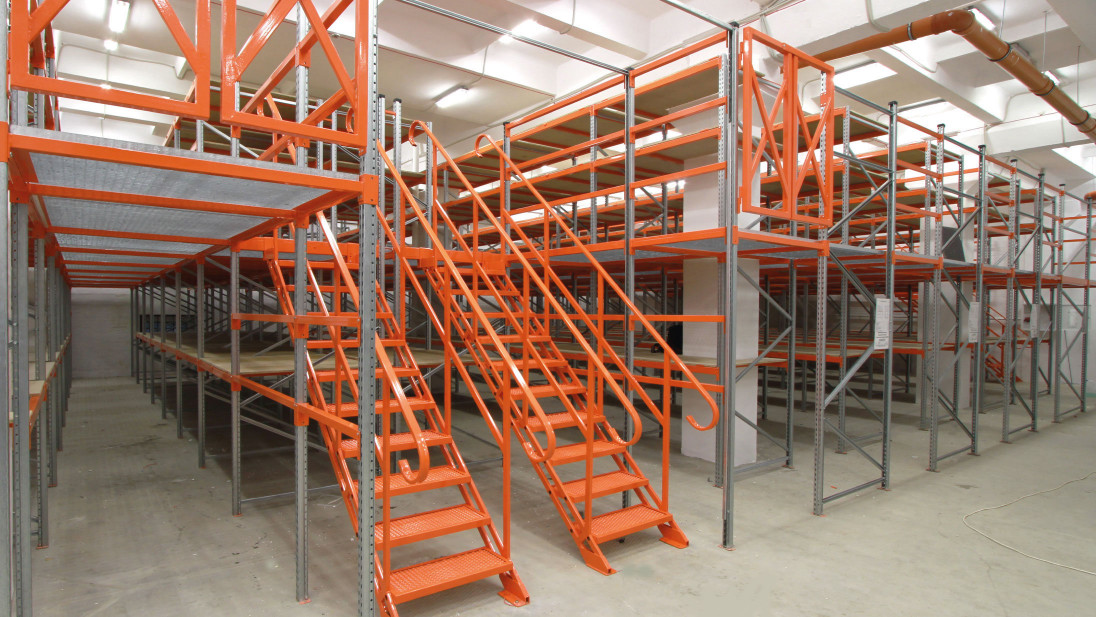

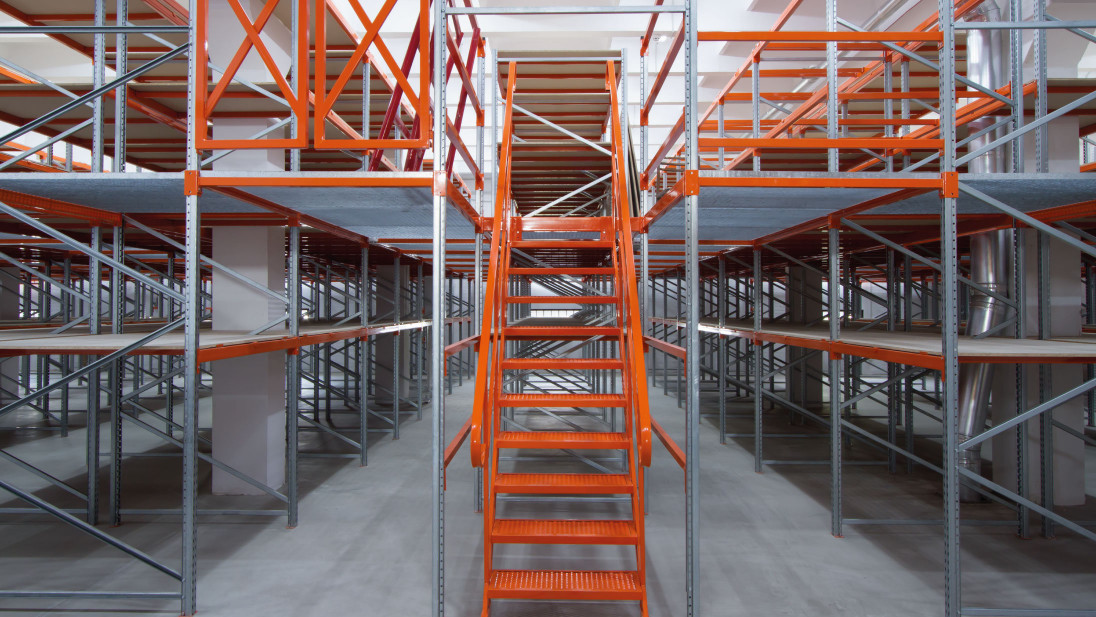

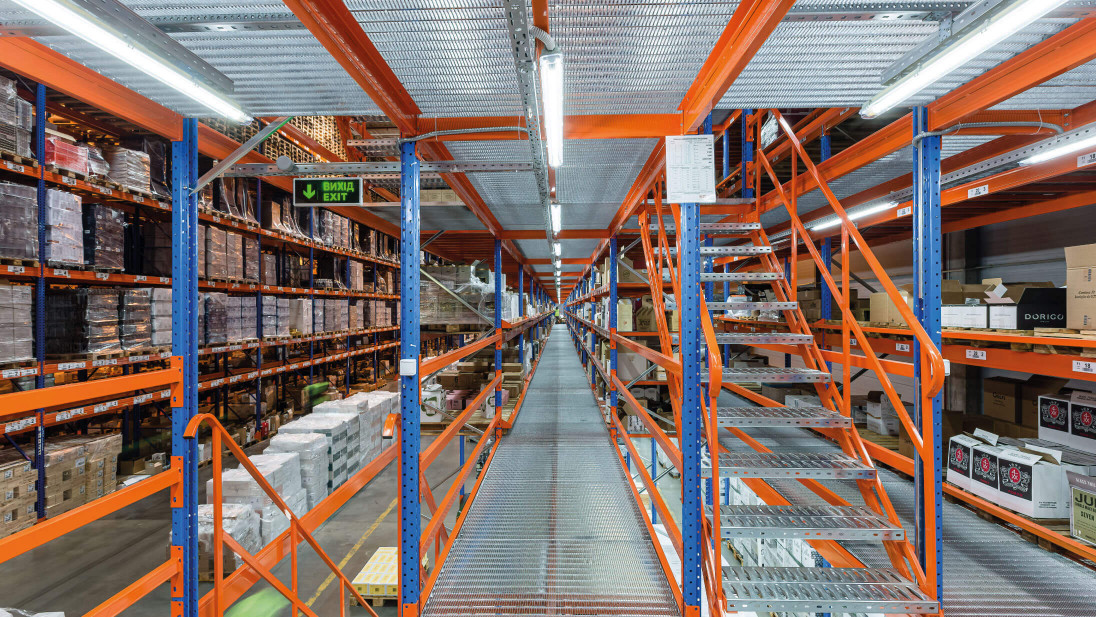

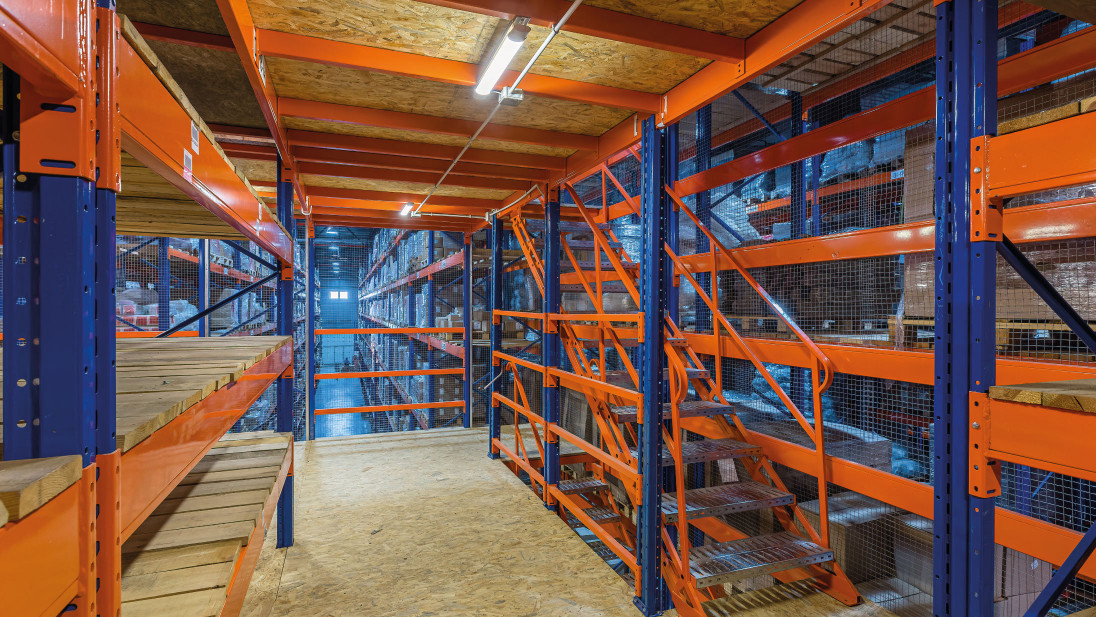

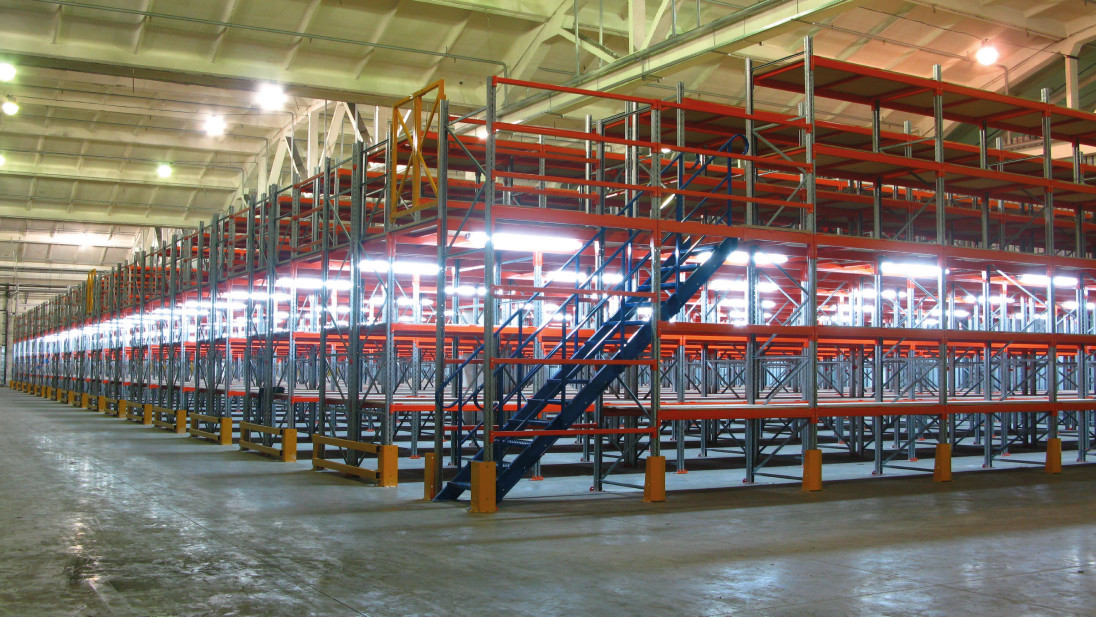

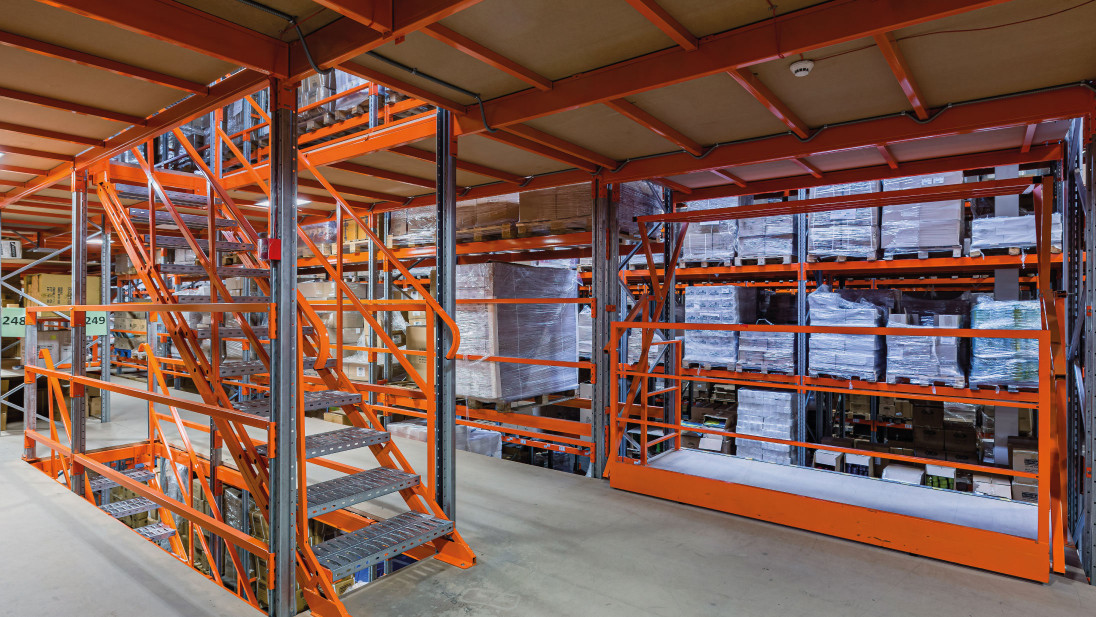

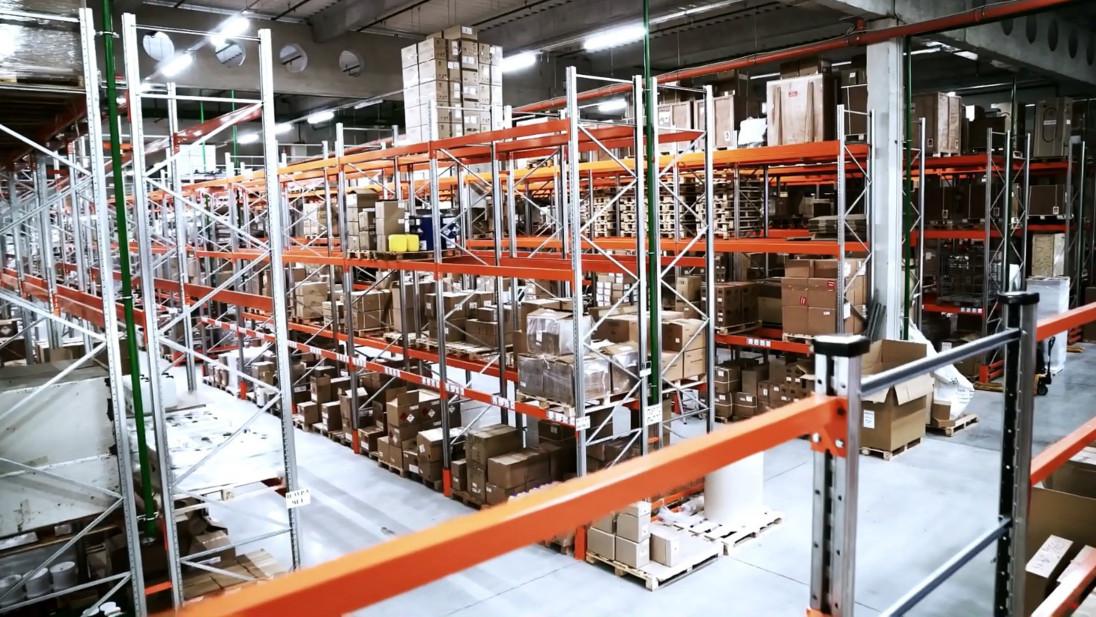

The staff access ladder is integrated into the racking row, has a comfortable angle of inclination and safe steps. Safety railings along the stairs and along the perimeter of all storeys reliably protect staff from injury.

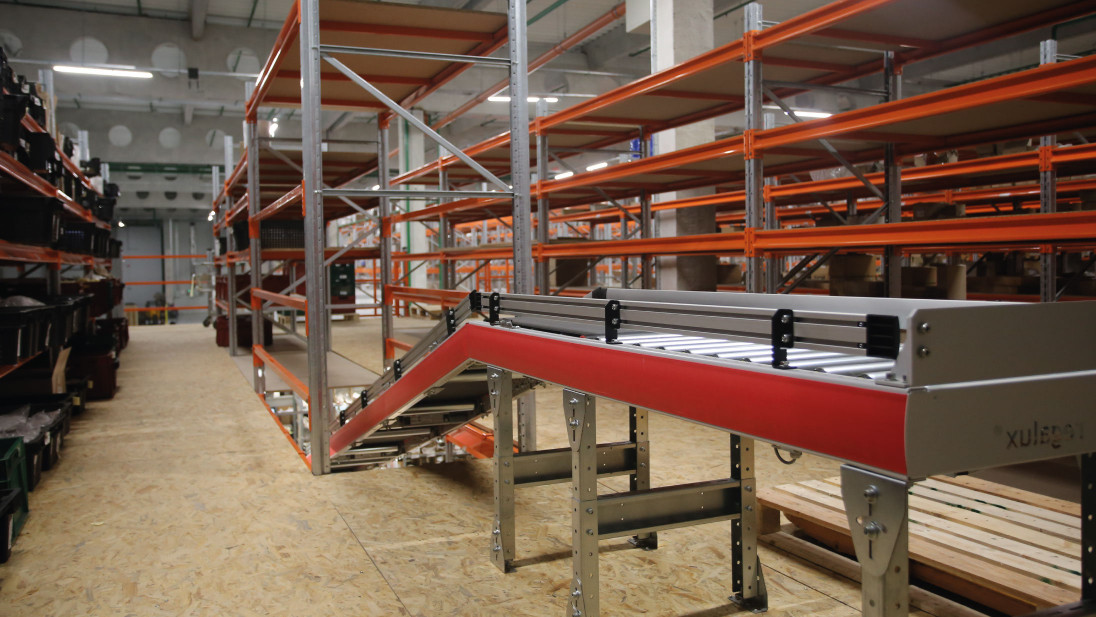

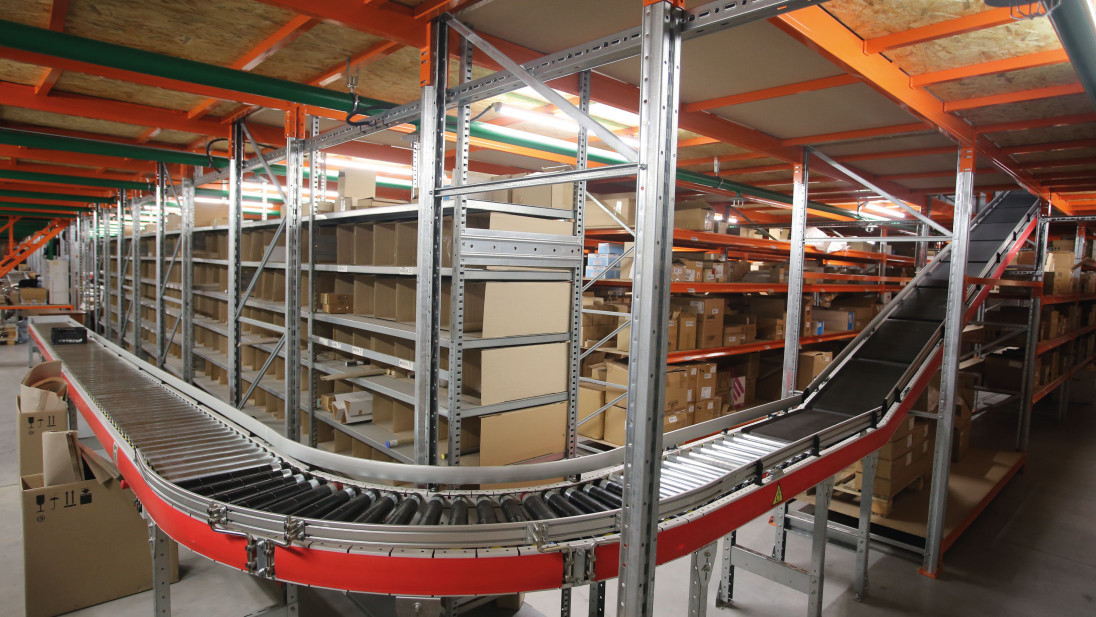

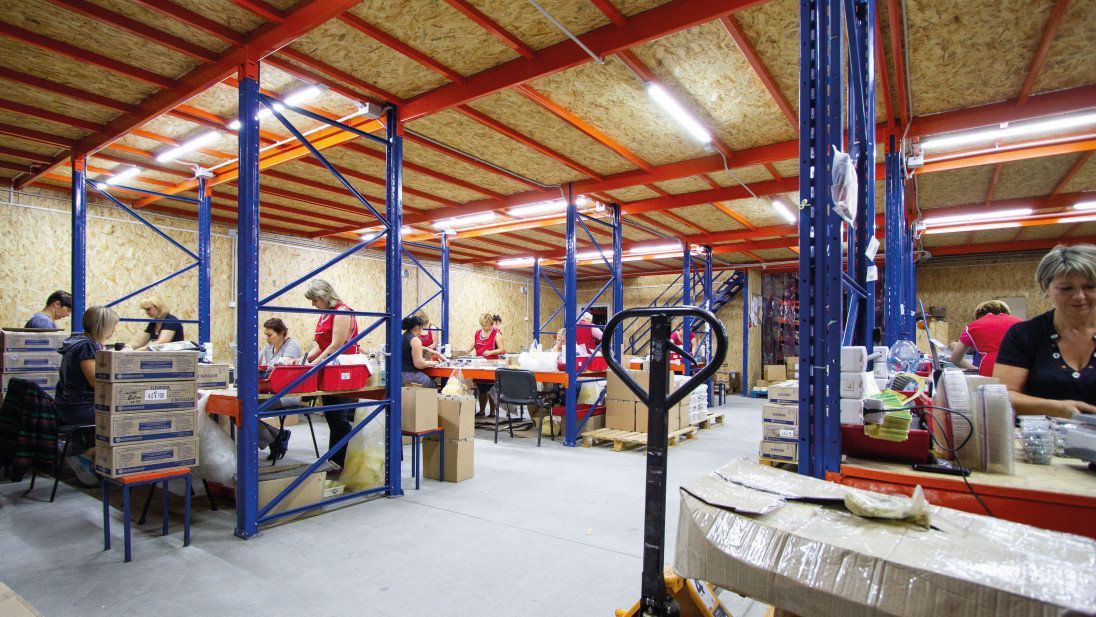

Interesting variations of the mezzanine are designs where the ground storey is used for shelf or pallet and shelf storage and the second storey is a solid area for office organisation or goods handling such as sorting, packaging, etc.
Specifications
Additional files
Projects
for your tasks
With 18 years of experience, we have created a list of effective solutions to problems in any area of business.
We will help to create the most effective structure for your tasks.
Terms of delivery
The price is for reinforced mezzanine with one level of overlap and one shelf on the tier (chipboard). Delivery and installation are not included in the cost of construction. The exact value of a mezzanine depends on your specifications and the current exchange rate. Check with the managers for details.
Individual pricing applies to bulk orders. Call, we will agree on the price!
If in stock – 3 calendar days
Delivery under the order – from 35 calendar days
Large and non-standard orders are discussed individually.
The company has a professional logistics department. We cooperate only with reliable carriers and guarantee quality delivery according to the stipulated terms. Self-pickup from our warehouse in Kyiv is also possible.
We cooperate with legal entities and individuals, we accept payments in any convenient form.
The amount of prepayment is agreed in each case.
By our own efforts and those of our partners, we are involved in the production process of each of our products, products and services. The presence of production of warehouse racks allows us to significantly optimize production costs and provide our customers with only the best prices.
The production is equipped with advanced equipment, thanks to which we produce the required amount of products in the shortest possible time, as well as - successfully implement projects of any complexity, with any type of required racking structures.
