Conveyor systems for pallets
- Automation of transportation of finished products and raw materials
- They are suitable for "cold" warehouses and refrigerators
- They are compatible with pallets of all sizes
- Carrying capacity is up to 2000 kg
Purpose
You can use conveyor systems mainly to transport palletised goods between different sites of a company: from the raw material warehouse to production, from production to the finished product warehouse, and between individual production departments. Where goods are moving along a fixed route and the number of operations is sufficiently high, conveyors allow the logistics chain to be substantially automated, minimising the involvement of staff and warehouse equipment.
Suitable for
- 1200x800 EUR pallets
- 1200x1000 FIN pallets
- Non-standard pallets
Description
Pallet conveyors come in two basic types – roller conveyors and chain conveyors. Roller conveyors are divided into driven and non-driven (gravity conveyors).

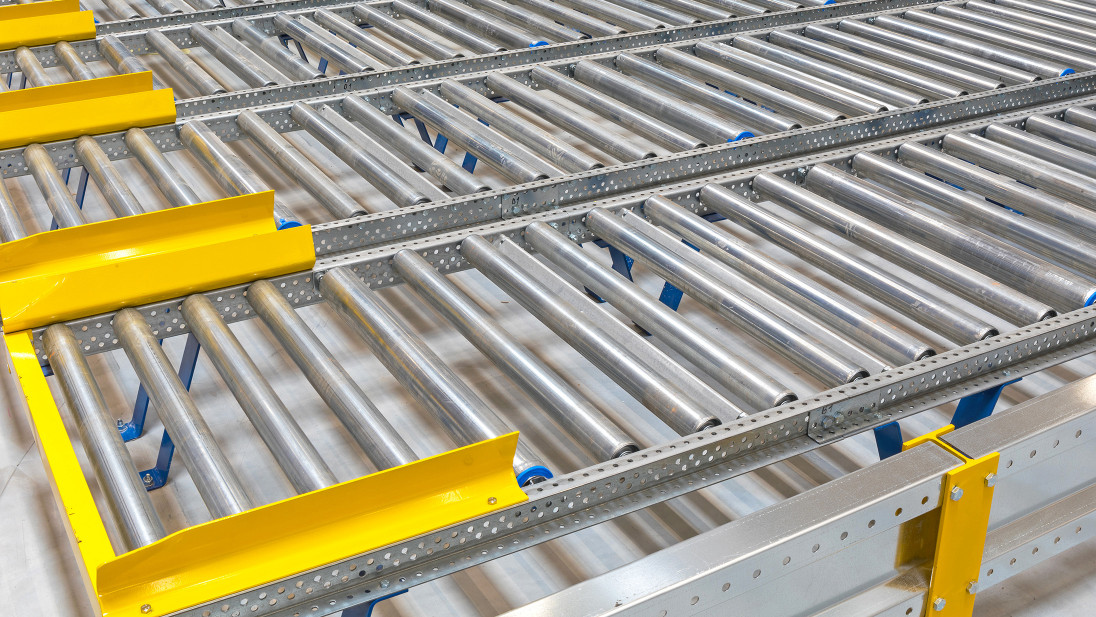

In roller conveyors, the pallet is guided in such a way that the pallet's skid rests directly on a group of rollers. Moving along the chain conveyor involves turning the pallet by 90 ° that is moving forward with the long side. This is necessary to fix the pallet on the chain axis securely and safely; furthermore, if the runners do not rest on different edges of the guides, the pallet may break, resulting in an emergency and damage to the goods.
Each type of conveyor finds its own application, even within a single project. This is because in most cases the cargo route does not consist of a single line, but is more complex, with one or more turns. In order to avoid having to turn a pallet at an intersection and then return the turning module to its original position, a different type of conveyor is usually installed when making a 90° turn. This significantly improves the performance of the entire system.

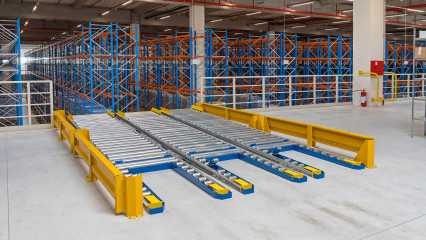

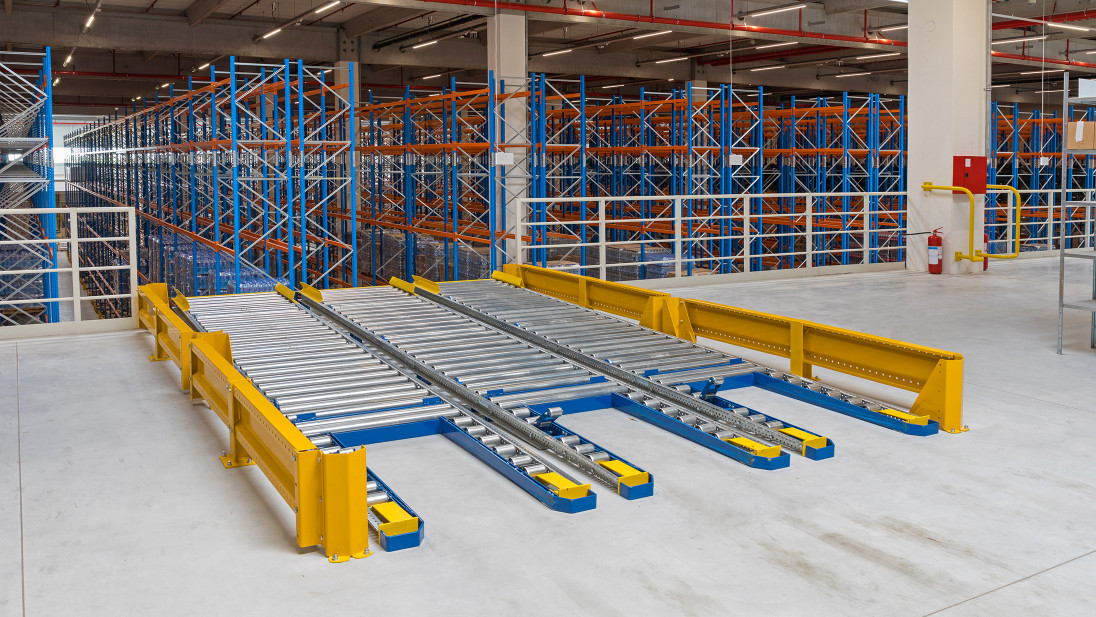

Gravity roller conveyors are often used as buffer stores in the unloading area. Guiding rails set at an angle of up to 7° allow the pallet to be transported automatically into the unloading area. When the end pallet is removed from the channel, all other pallets move one position forward.
The accumulation roller conveyors have a very important function: they allow operators who bring pallets from the storage area to set cargo in a fixed place, i.e. the loading area of the roller conveyor. Forklift operators who move these pallets into the trucks will also be able to pick them up from the same position. This speeds up the work considerably, as staff do not have to make unnecessary manoeuvres to rearrange and find the pallets they need.
To choose the optimal type of conveyor and its configuration, it is necessary to take into account the intensity of goods flow, main routes of cargo movement, and features of concurrent technological processes. Specialists of Sklad Service will help to choose the most suitable configuration of equipment, and offer delivery options all over Ukraine.
Specifications
Additional files
for your tasks
With 18 years of experience, we have created a list of effective solutions to problems in any area of business.
We will help to create the most effective structure for your tasks.
Terms of delivery
The price is for conveyor systems, depending on the design and principle of operation. Without delivery and installation. The exact cost depends on your terms of reference and the current exchange rate. Check with the manager for details.
For bulk orders, individual pricing applies. Call us, we'll agree on a price!
Delivery under the order – from 20 calendar days
Large and non-standard orders are discussed individually.
The company has a professional logistics department. We cooperate only with reliable carriers and guarantee quality delivery according to the stipulated terms. Self-pickup from our warehouse in Kyiv is also possible.
We cooperate with legal entities and individuals, we accept payments in any convenient form.
The amount of prepayment is agreed in each case.
By our own efforts and those of our partners, we are involved in the production process of each of our products, products and services. The presence of production of warehouse racks allows us to significantly optimize production costs and provide our customers with only the best prices.
The production is equipped with advanced equipment, thanks to which we produce the required amount of products in the shortest possible time, as well as – successfully implement projects of any complexity, with any type of required racking structures.
The price is for conveyor systems, depending on the design and principle of operation. Without delivery and installation. The exact cost depends on your terms of reference and the current exchange rate. Check with the manager for details.
For bulk orders, individual pricing applies. Call us, we'll agree on a price!
Delivery under the order – from 20 calendar days
Large and non-standard orders are discussed individually.
The company has a professional logistics department. We cooperate only with reliable carriers and guarantee quality delivery according to the stipulated terms. Self-pickup from our warehouse in Kyiv is also possible.
We cooperate with legal entities and individuals, we accept payments in any convenient form.
The amount of prepayment is agreed in each case.
By our own efforts and those of our partners, we are involved in the production process of each of our products, products and services. The presence of production of warehouse racks allows us to significantly optimize production costs and provide our customers with only the best prices.
The production is equipped with advanced equipment, thanks to which we produce the required amount of products in the shortest possible time, as well as – successfully implement projects of any complexity, with any type of required racking structures.
