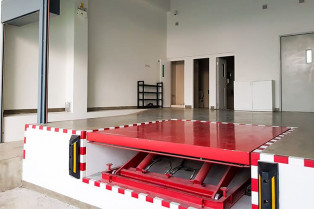

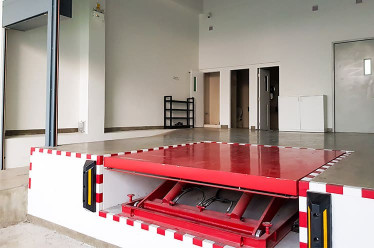

Loading Dock Tables
- Load capacity: 2 to 10 tonnes
- Lifting height is up to 1.6 m
- Rugged construction for high loads
- Protected electrohydraulic unit
Purpose

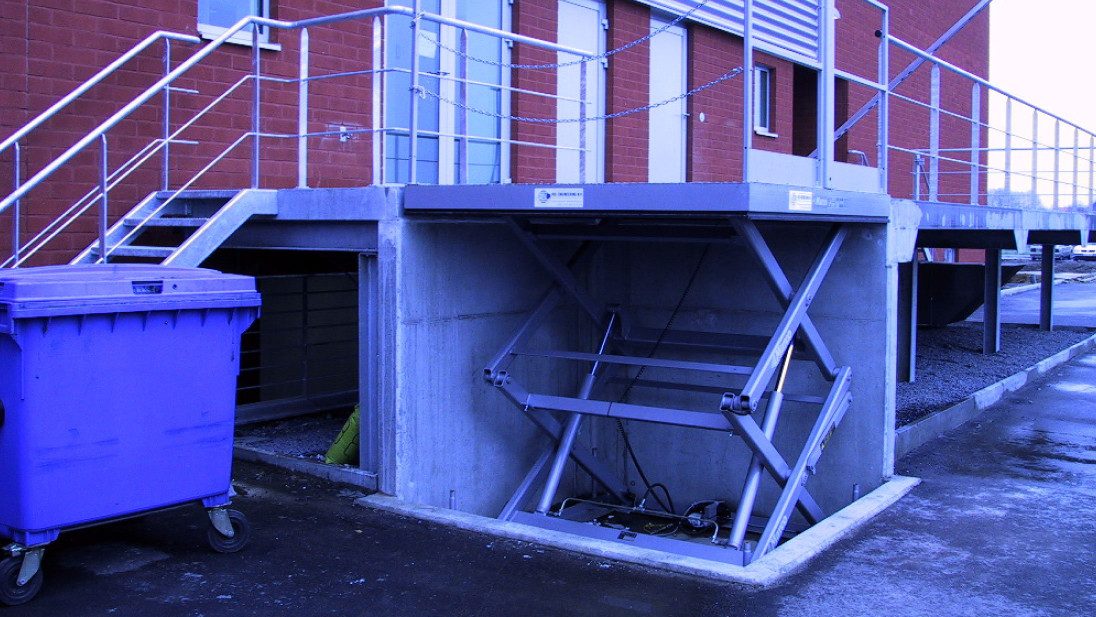

Loading dock tables have a rugged construction, which is ideal for use in loading and unloading stations, including outdoor applications. The scissor mechanism made of high-strength structural steel allows using these units for lifting heavy electric, petrol and diesel-powered machinery with a total weight of up to 10 tonnes to the desired height. Electric controls are additionally protected against water, dust and dirt, which makes these lift tables suitable for outdoor storage and transport facilities.
Suitable for
- Docks
- Freight railway stations
- Large logistics terminals
Spheres of activity
-
DIY (construction, repair)
-
Food, beverages
-
Drogerie (cosmetics, household products)
-
Clothing, shoes
-
Pharmaceuticals, medicine
-
Transport, communications, logistics, archives
-
Household appliances, electronics
-
Agro-industrial complex, forestry
-
Cars, special-purpose machineries
-
Public utilities
-
Finance, insurance
-
Education, culture, printing industry
-
Sports, tourism, entertainment
Description

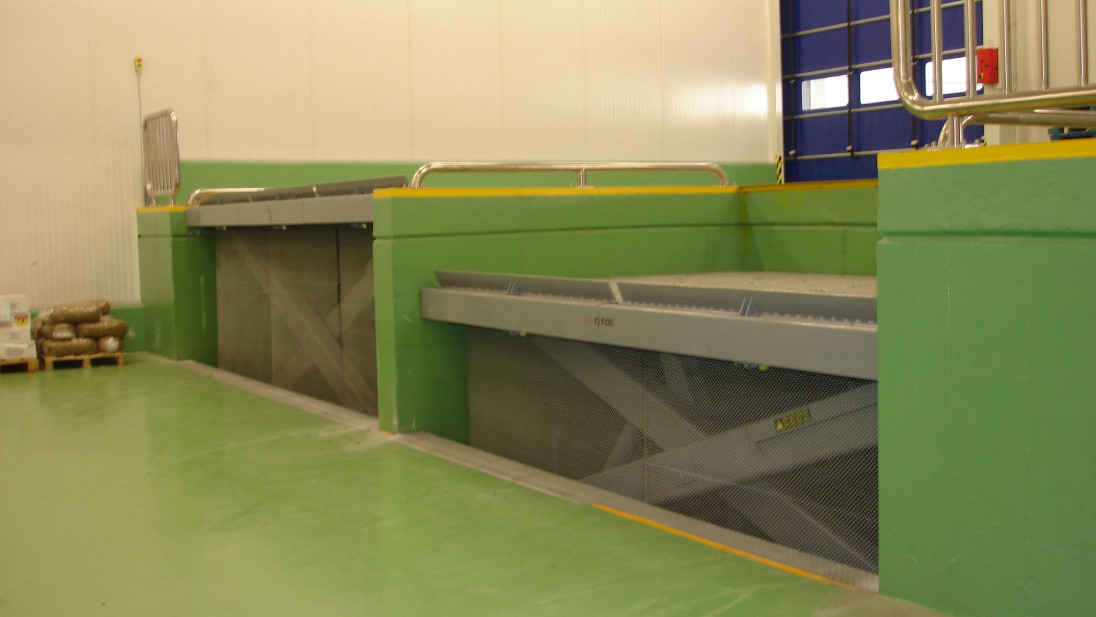

Loading dock tables differ from classic ones primarily by their reinforced frame and the advanced protection of electrical and hydraulic components. This is achieved by using high-strength structural steel. Similar alloys are used in machines and mechanisms whose operation implies serious and constant strain on the material.

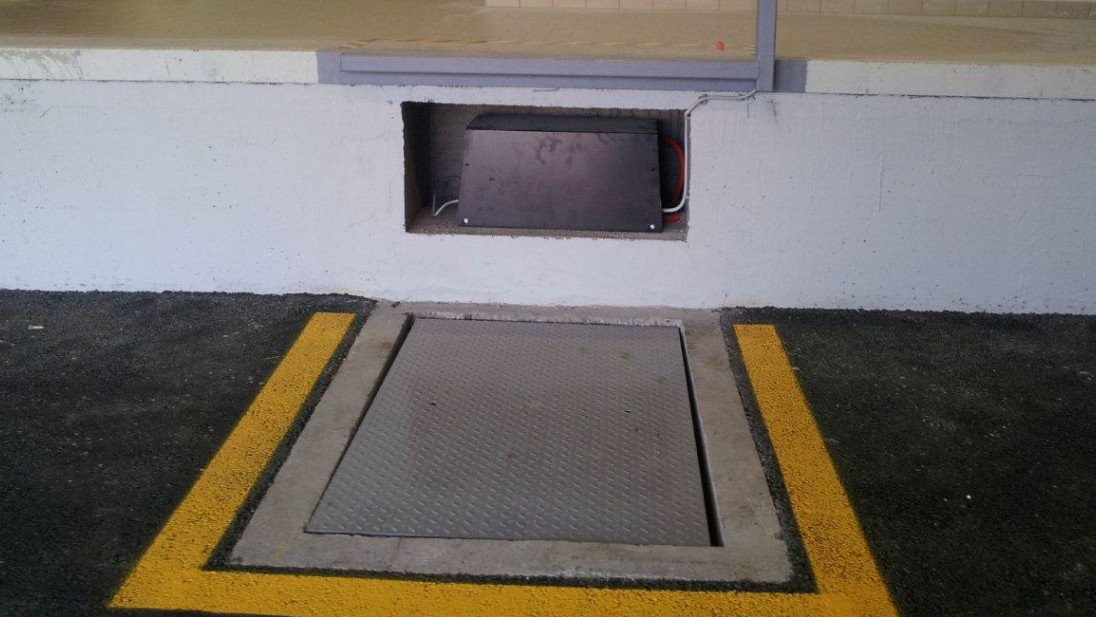

Besides, the electrohydraulic unit has an IP54 degree of protection (under IEC 60529 and DIN 40050). This means that when the lift table is installed in an open area, the possibility of the unit failing due to water penetrating the housing is drastically reduced. However, dock tables must be installed in an area protected against waterlogging, e.g. on natural or artificial hills. Besides, the internal electrical components are reliably protected against dust (only enclosed devices, such as computer hard drives, are more dust-proof).

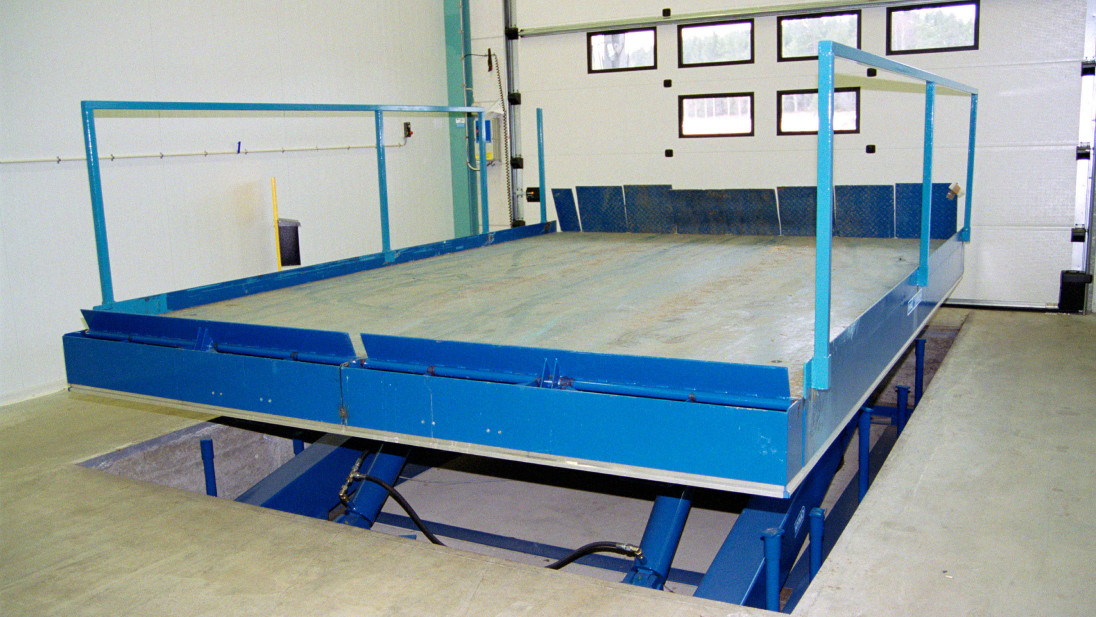

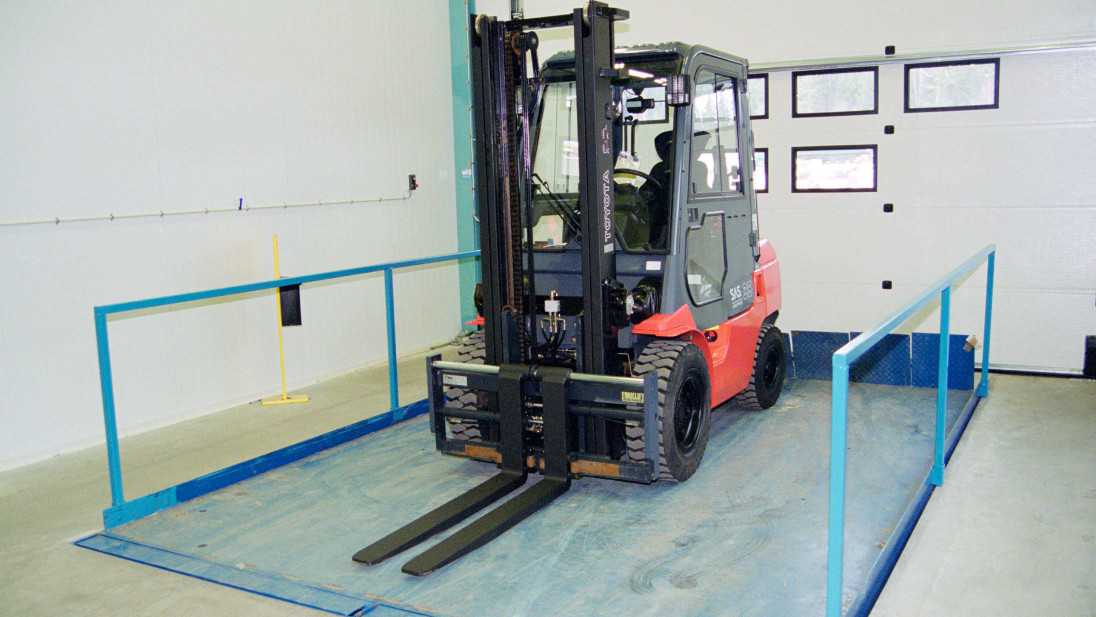

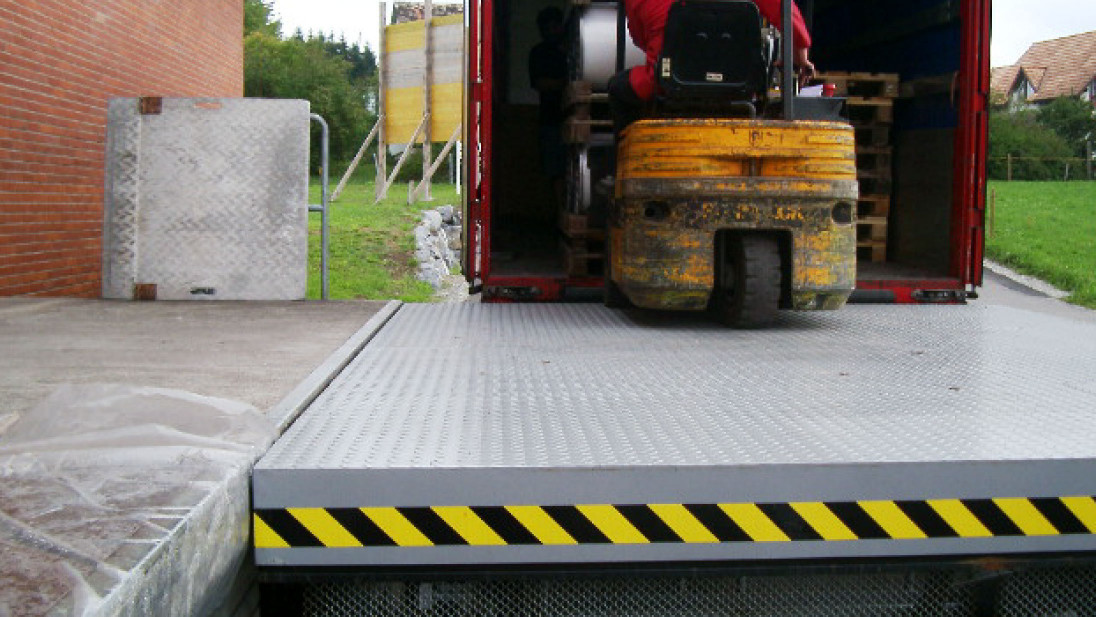

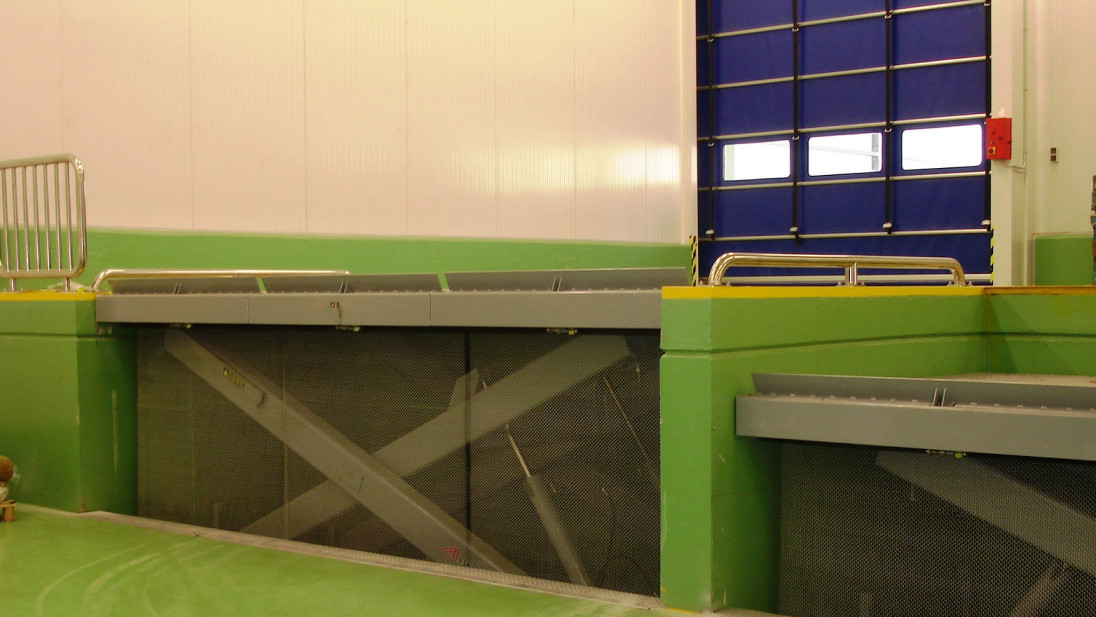

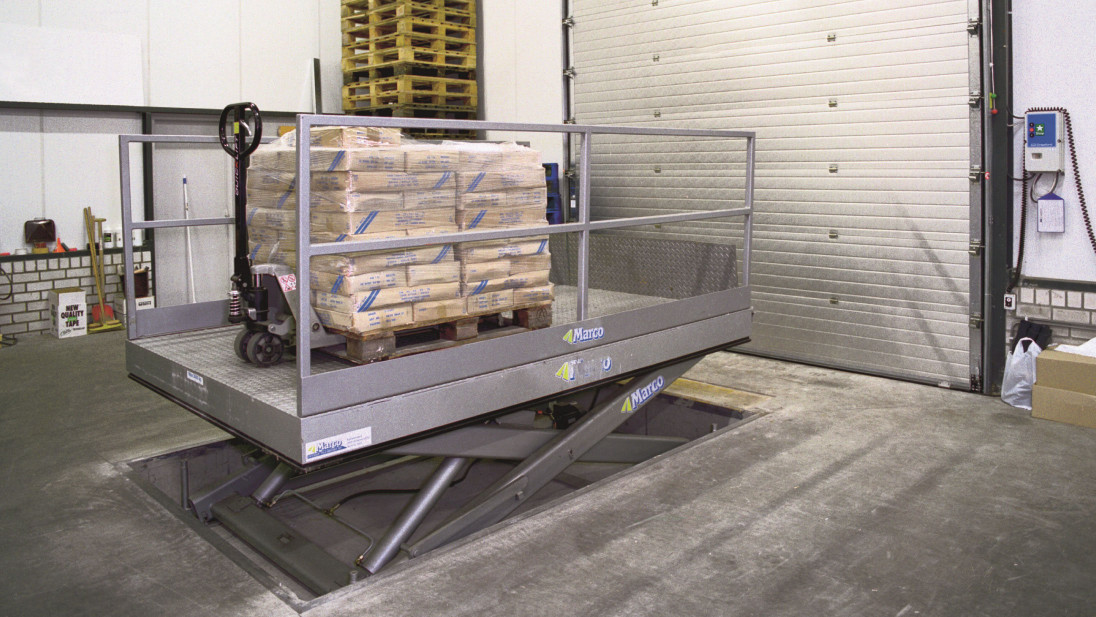

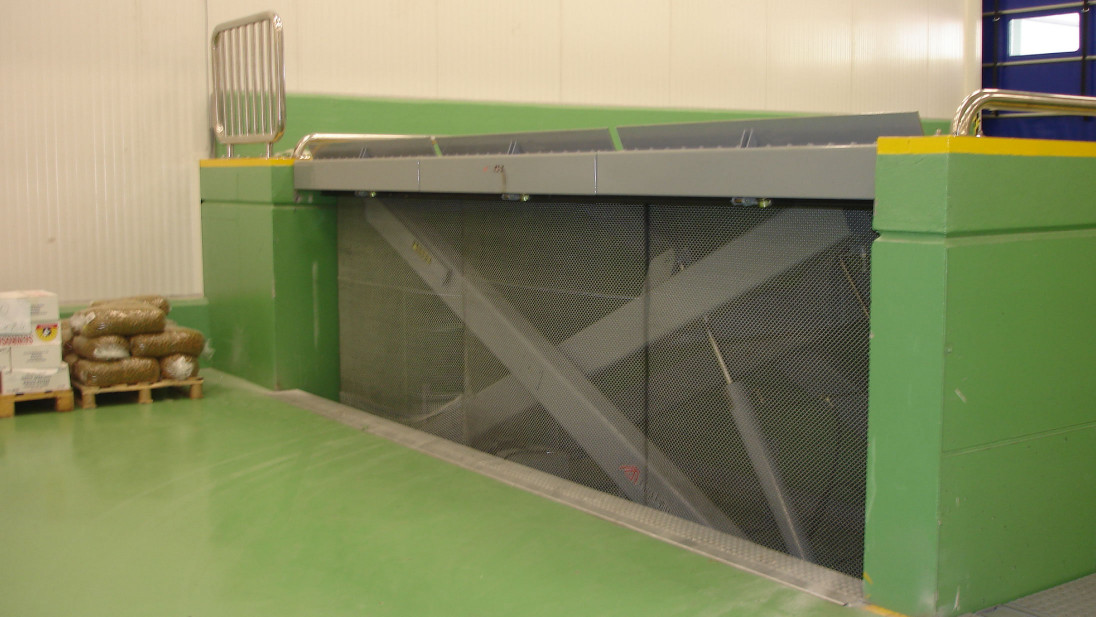

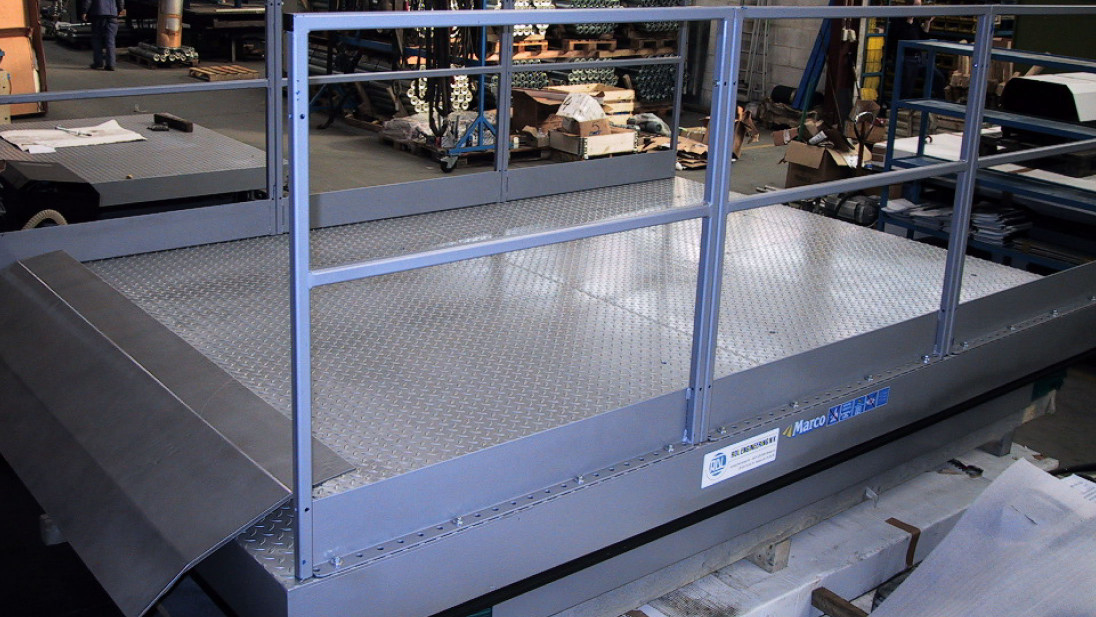

Another difference between dock tables and classic lifts is the presence of railings and folding ramps. The first ones ensure the safety of people and the safety of material values during loading and unloading. The loading ramp, on the other hand, allows hand and electric trolleys as well as forklifts to enter the wagon, container or lorry.

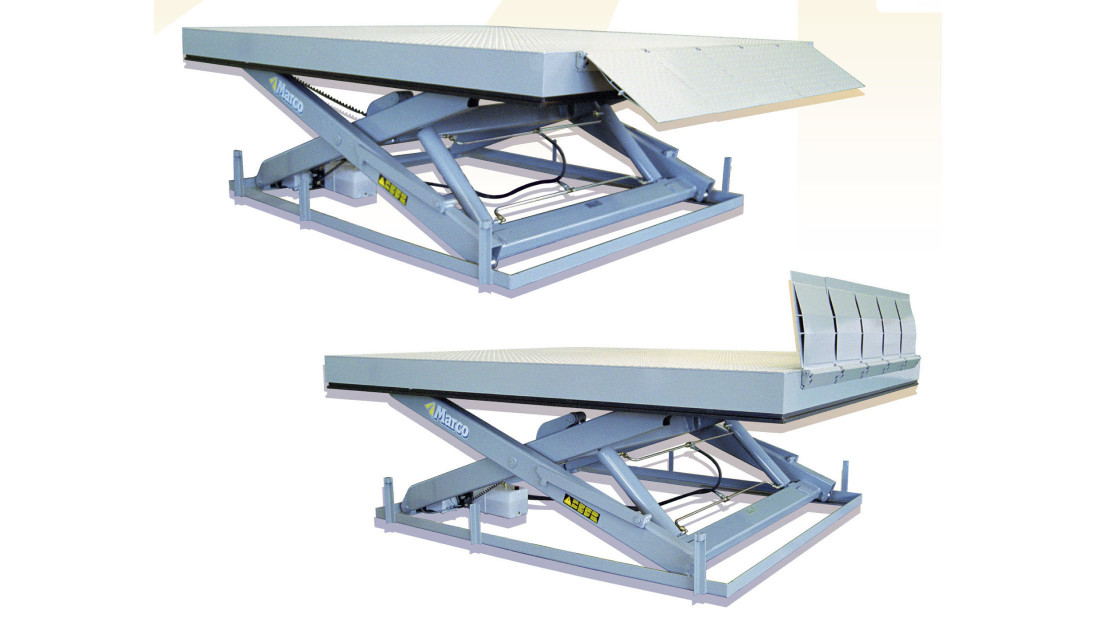

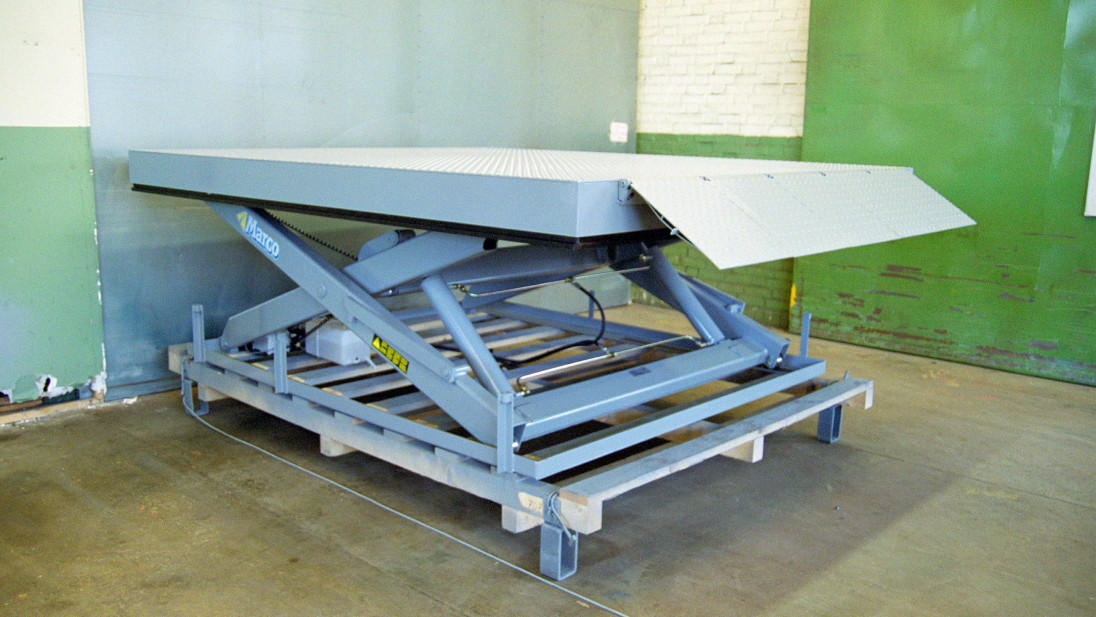

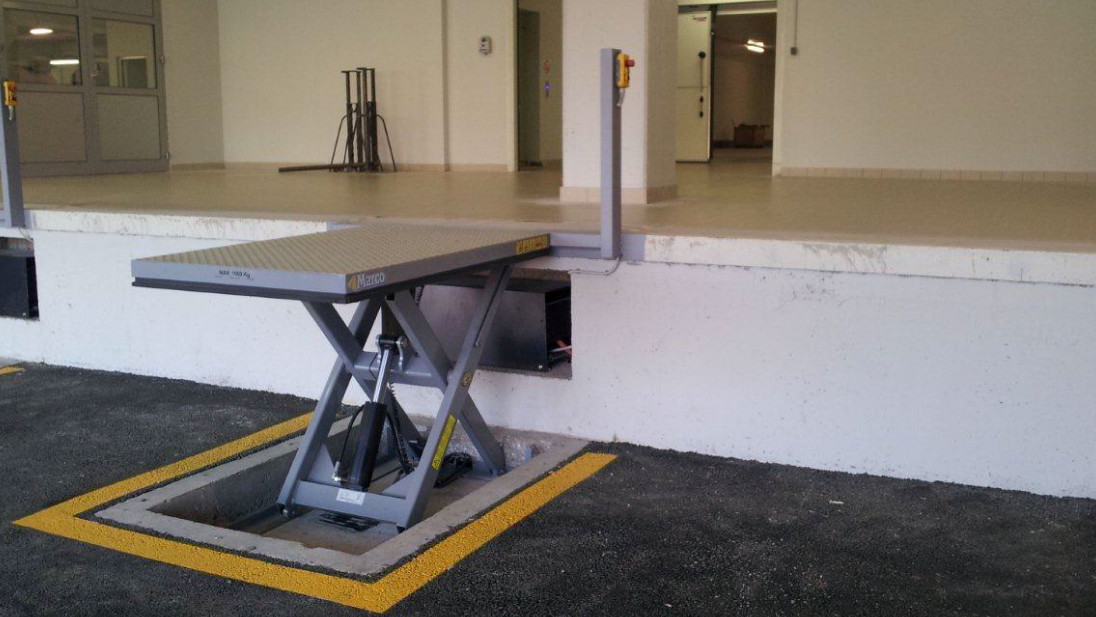

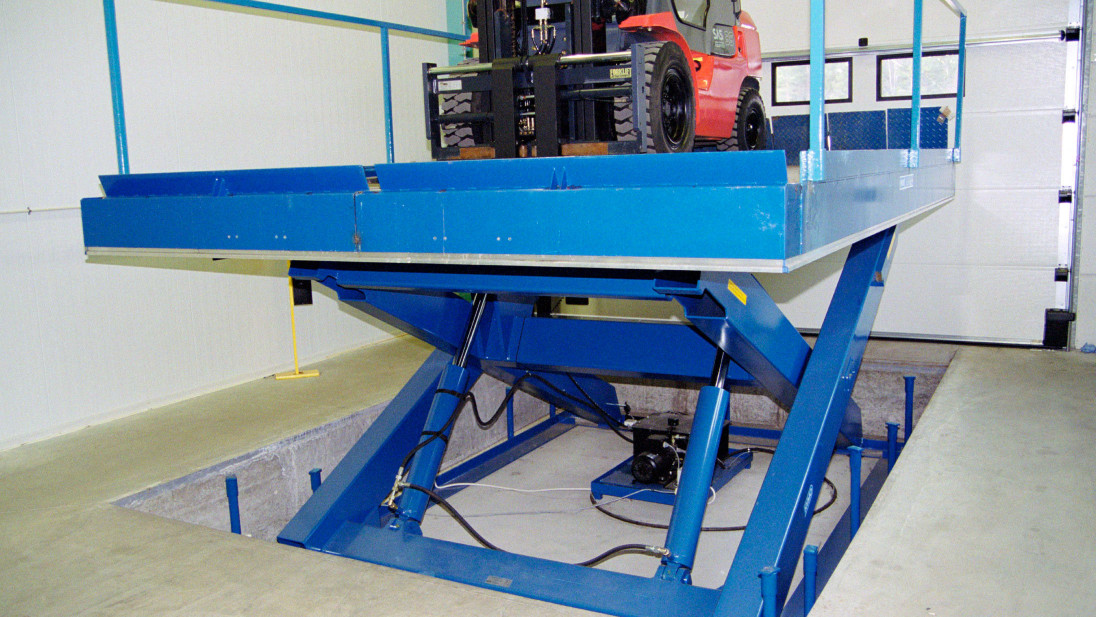

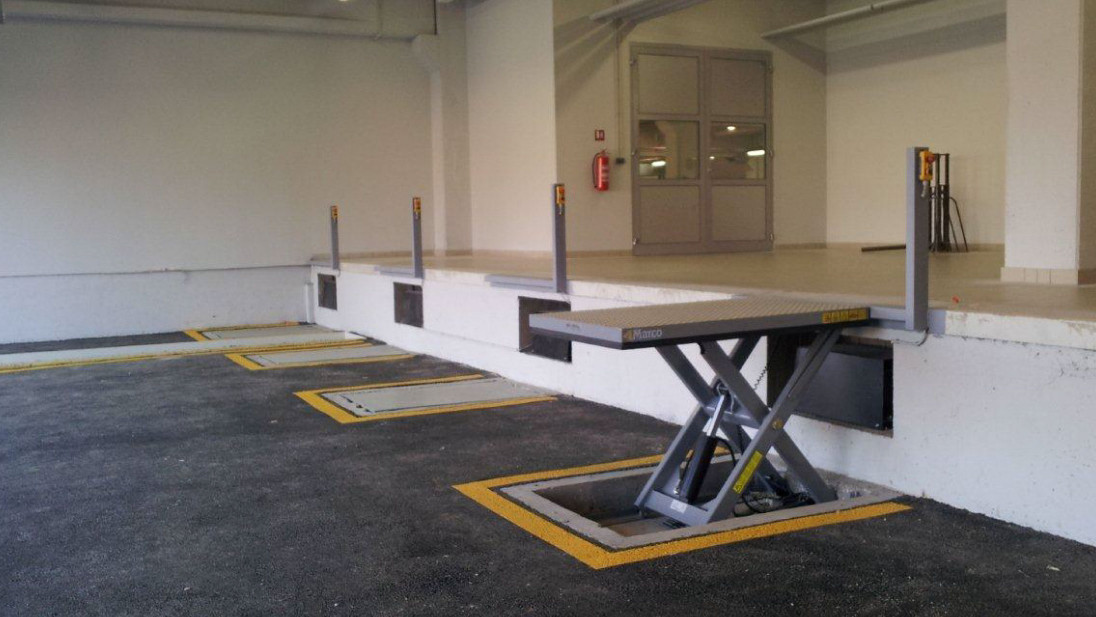

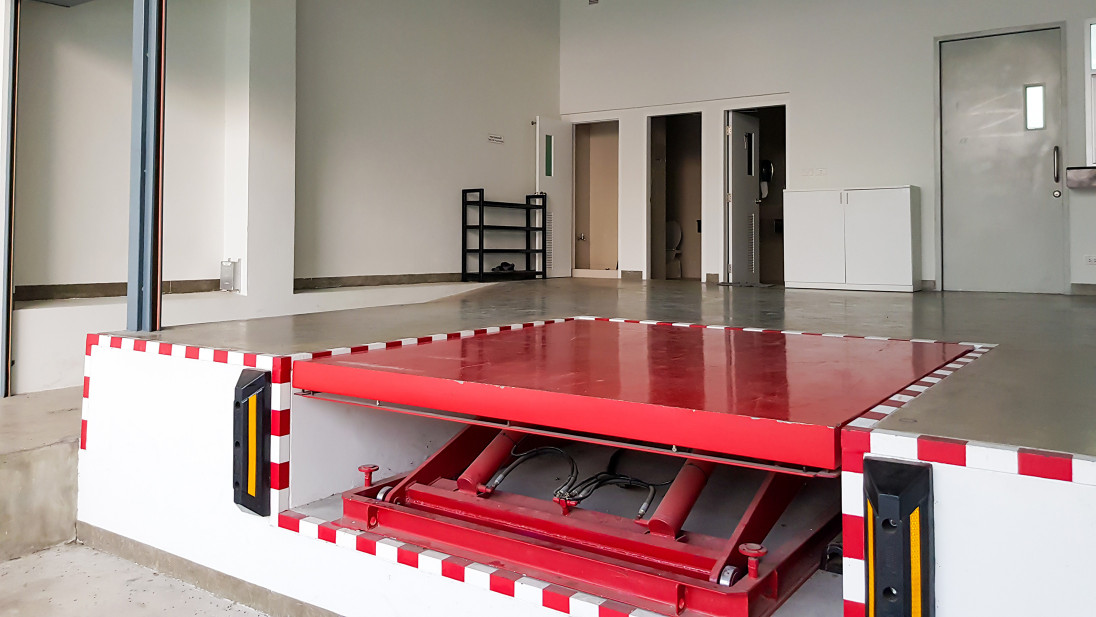

In other aspects, dock and standard lift tables have a similar design. The principle is also the same: An electronically controlled hydraulic unit affects the central axis of the scissor mechanism. This changes the angle of the crisscrossing beams so that the upper platform is lifted to the correct height.
Sklad Service is the official representative of the major manufacturers of warehouse lifting devices in Ukraine. We provide the manufacturer warranty on all loading dock tables, as well as other equipment presented in our catalogue. All products meet the requirements of FEM/EN, ISO and DSTU.
Specifications
Additional files
Projects
for your tasks
With 18 years of experience, we have created a list of effective solutions to problems in any area of business.
We will help to create the most effective structure for your tasks.
Terms of delivery
The price is specified for Dock lifting tables in a basic complete set. Without delivery. The exact cost depends on your terms of reference and the current exchange rate. Check with the manager for details.
For bulk orders, individual pricing applies. Call us, we'll agree on a price!
In stock - 1 calendar day
Delivery under the order - from 90 calendar days
Large and non-standard orders are discussed on an individual basis.
The company employs a professional logistics department. We cooperate only with reliable carriers and guarantee high-quality delivery according to the agreed terms. Self-delivery from our warehouse in Kyiv is also possible.
We cooperate with legal entities and individuals, we accept payments in any convenient form.
The amount of the advance payment is agreed on a case-by-case basis.
Lifting tables of both Ukrainian and European production.
The price is specified for Dock lifting tables in a basic complete set. Without delivery. The exact cost depends on your terms of reference and the current exchange rate. Check with the manager for details.
For bulk orders, individual pricing applies. Call us, we'll agree on a price!
In stock - 1 calendar day
Delivery under the order - from 90 calendar days
Large and non-standard orders are discussed on an individual basis.
The company employs a professional logistics department. We cooperate only with reliable carriers and guarantee high-quality delivery according to the agreed terms. Self-delivery from our warehouse in Kyiv is also possible.
We cooperate with legal entities and individuals, we accept payments in any convenient form.
The amount of the advance payment is agreed on a case-by-case basis.
Lifting tables of both Ukrainian and European production.
